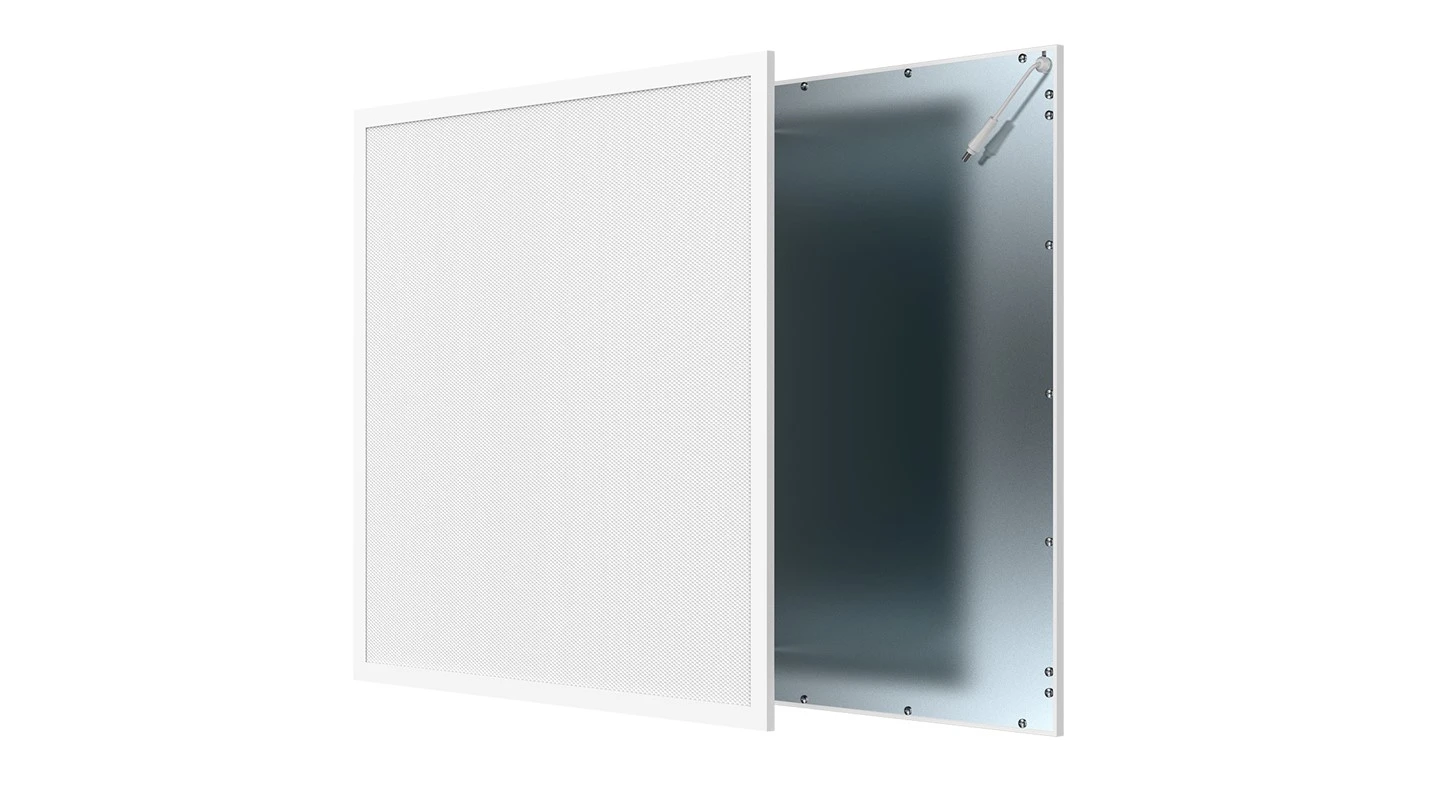

Edgelit Panel Chiedza

Edgelit Panel Chiedza

Tsanangudzo:

PN200 Edge-lit panel idhindo rinoshanda. PMMA LGP inogadzira yunifomu yemwenje yakakwira lumen kubuda kusvika ku140LM/W, inogona kukwana isina musono munzvimbo ipi neipi yebasa, inowanikwa mune yakadzoreredzwa, yakamiswa uye pamusoro yakamisikidzwa nzira yekuisa. Inoita kuti mapanera aishandiswa zvakanyanya pane akasiyana maapplication.









Feature:

>Ultra flat casing: 10mm

>Kusvika ku130lm/W

>Muchena furemu ruvara: RAL9016

>Flicker yemahara & makore mashanu waranti

Send Inquiry
Download
Description
Technical Parameters

NHUNGAMIDZO:

Iyo Toppo PN200 LED Flat Panel inoshanda, inodhura-inoshanda kumucheto-rit mhinduro. Iyo PMMA LGP inogadzira chiedza chakafanana chine lumen inobuda inosvika 140lm/W, ichisanganiswa zvisina musono munzvimbo ipi neipi yebasa. Inogona kuiswa uchishandisa nzira dzakadzoserwa, dzakamiswa uye dzakaiswa pamusoro, zvichiita kuti 60x60 LED ikwane kune dzakasiyana siyana dzekushandisa.



Order Code Rated Power LM/W Lumen SDCM/Ra IP Kirasi Product Dimension GW/CTN QTY/CTN
PN2XX-22W-SN1-30F01-00 30W typ.130 typ.3900 <3 / Ra80/90 IP20/IP44/IP65 L595*W595*H10 13.0kg 4pcs
PN2XX-41W-SN1-30F01-00 30W typ.130 typ.3900 <3 / Ra80/90 IP20/IP44/IP65 L1195*W295*H10 16.5kg 5pcs
PN2XX-42W-SN1-50F01-00 50W typ.130 typ.4500 <3 / Ra80/90 IP20/IP44/IP65 L1195*W595*H10 12.0kg 2pcs
PN2XX-62W-SN1-30F01-00 30W typ.130 typ.3900 <3 / Ra80/90 IP20/IP44/IP65 L620*W620*H10 16.0kg 4pcs

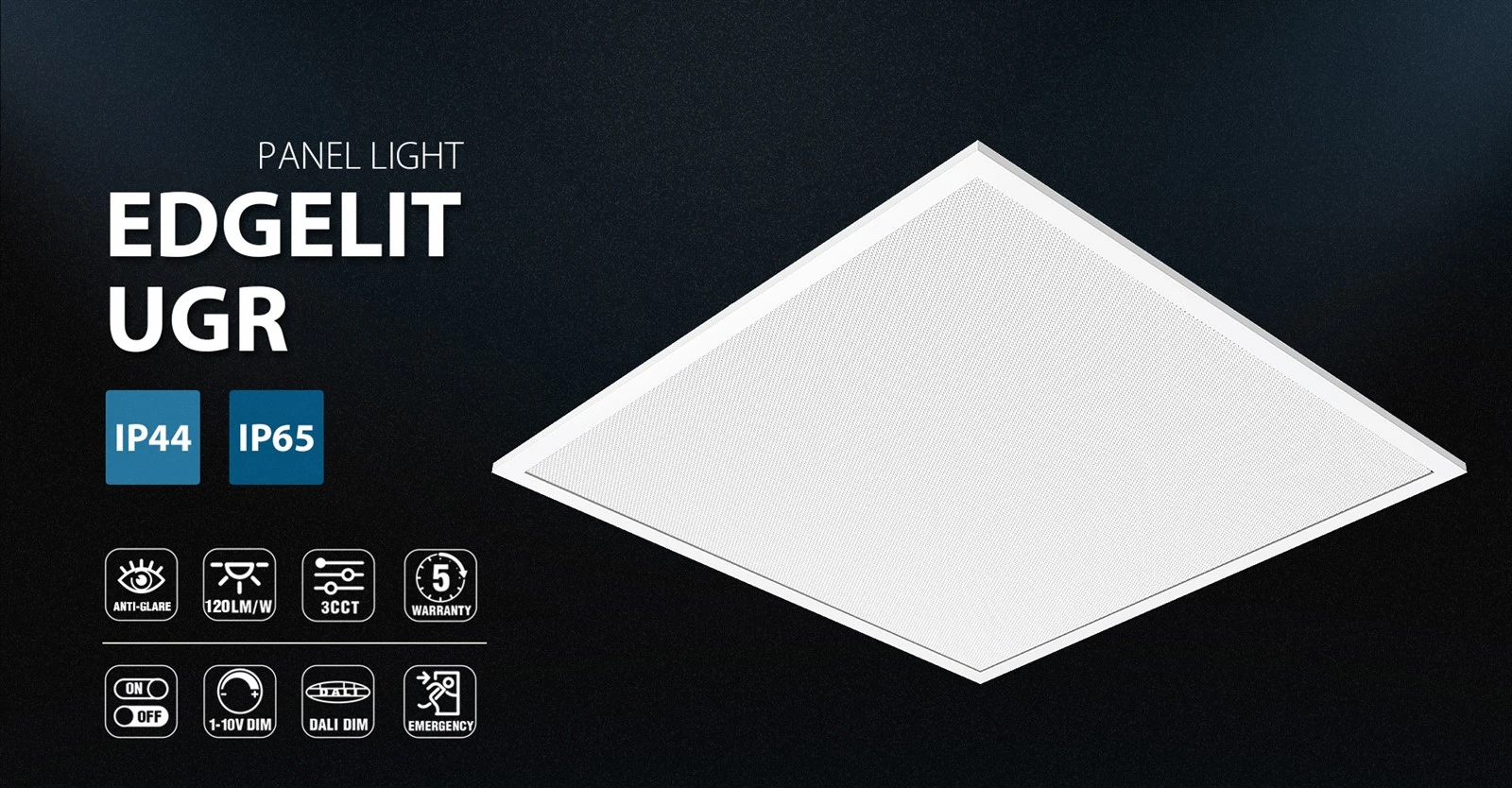

EdgeLit -1

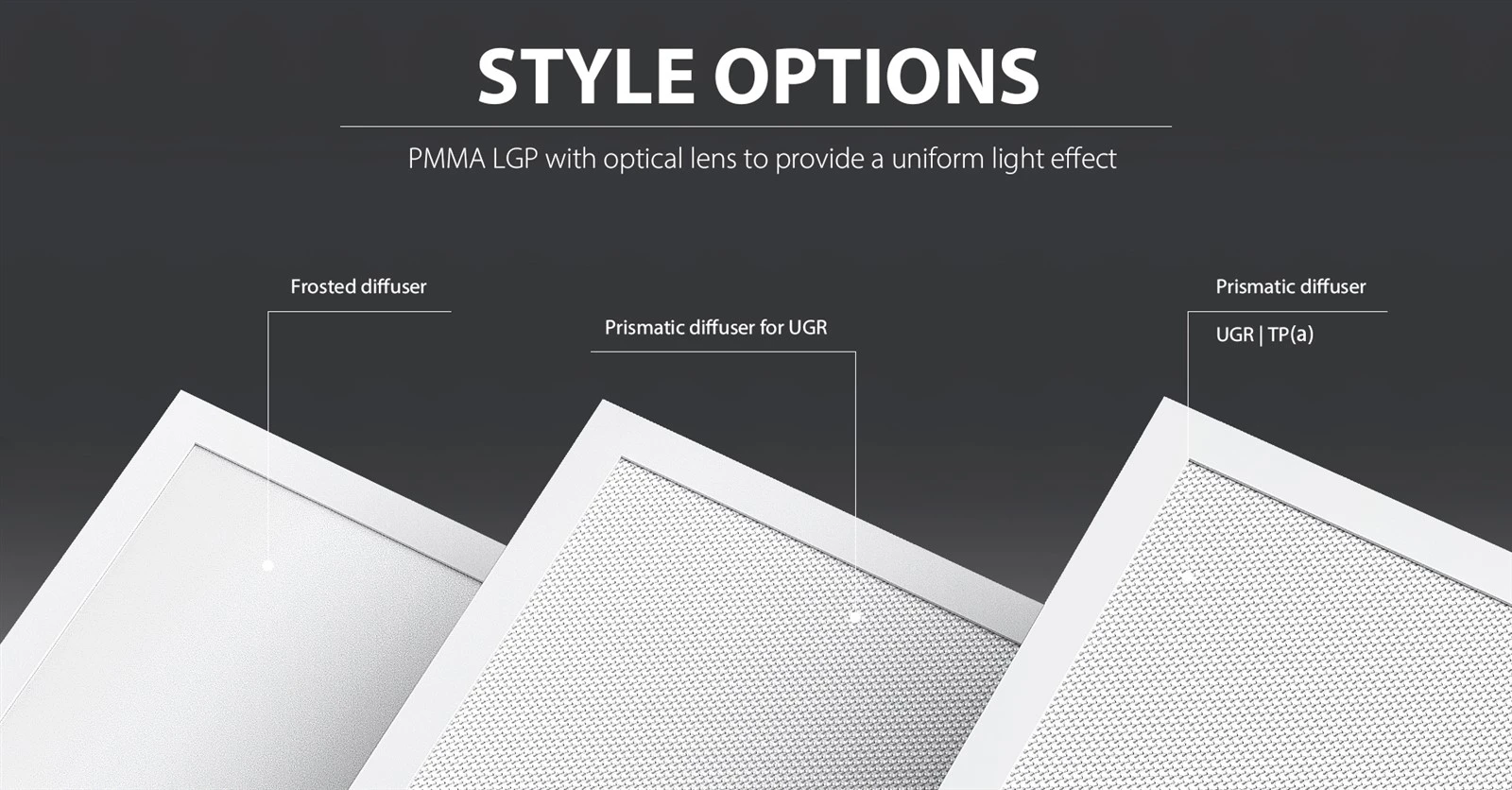

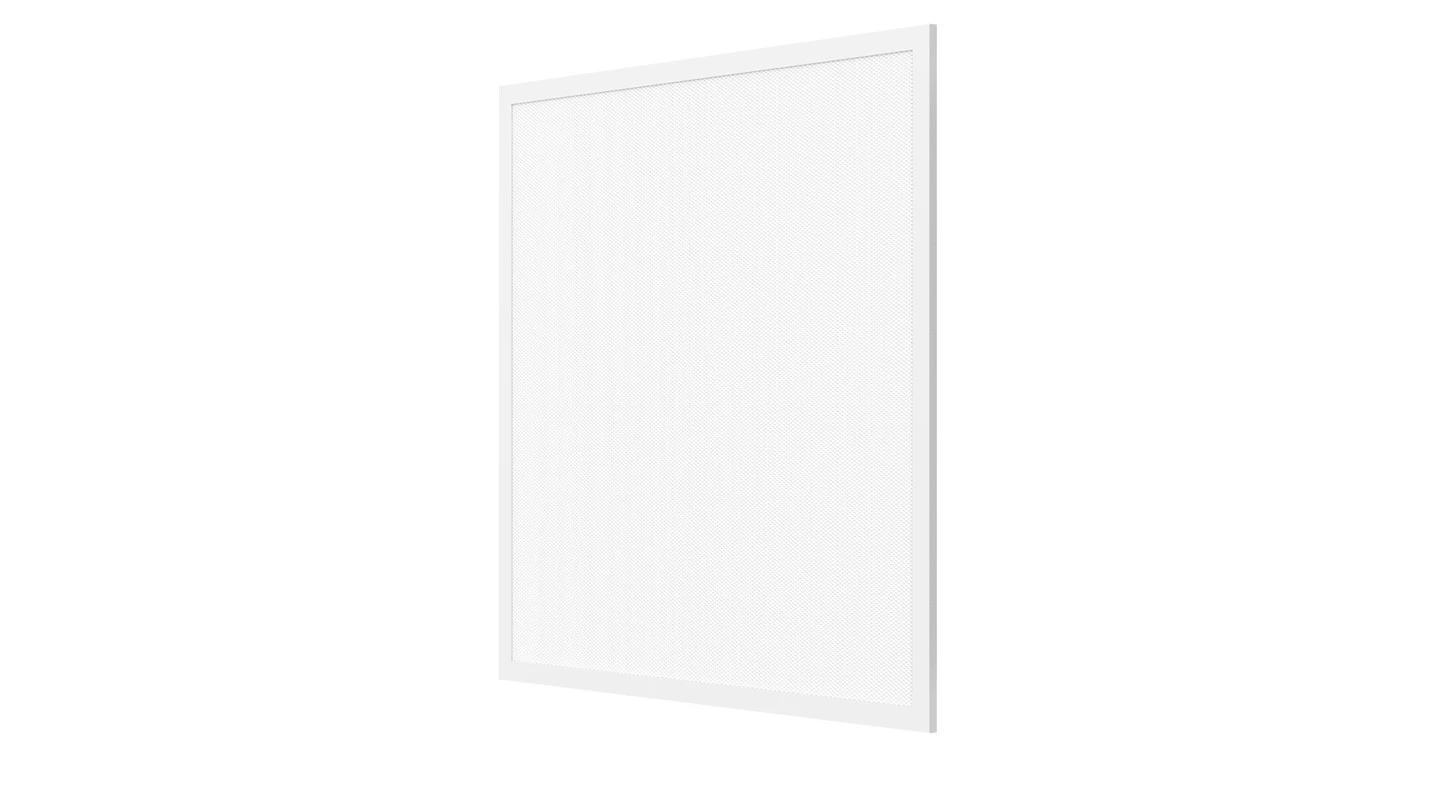

EdgeLit -2

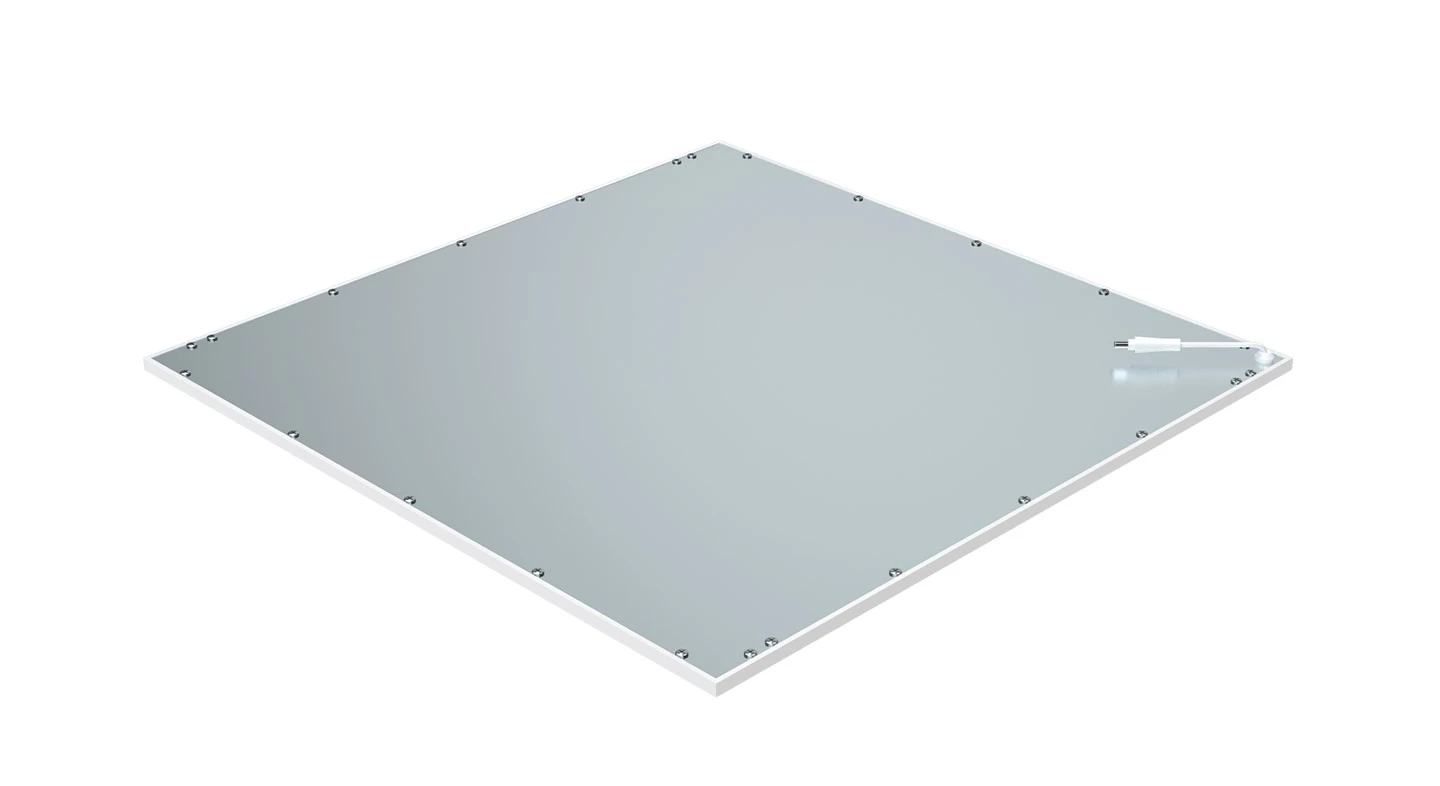

EdgeLit -3

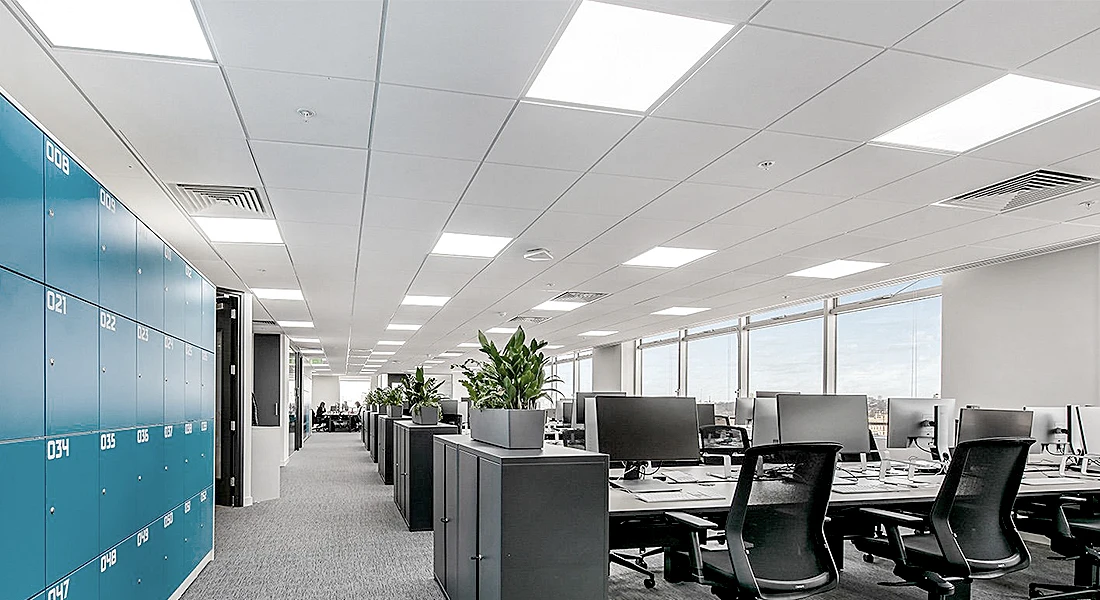

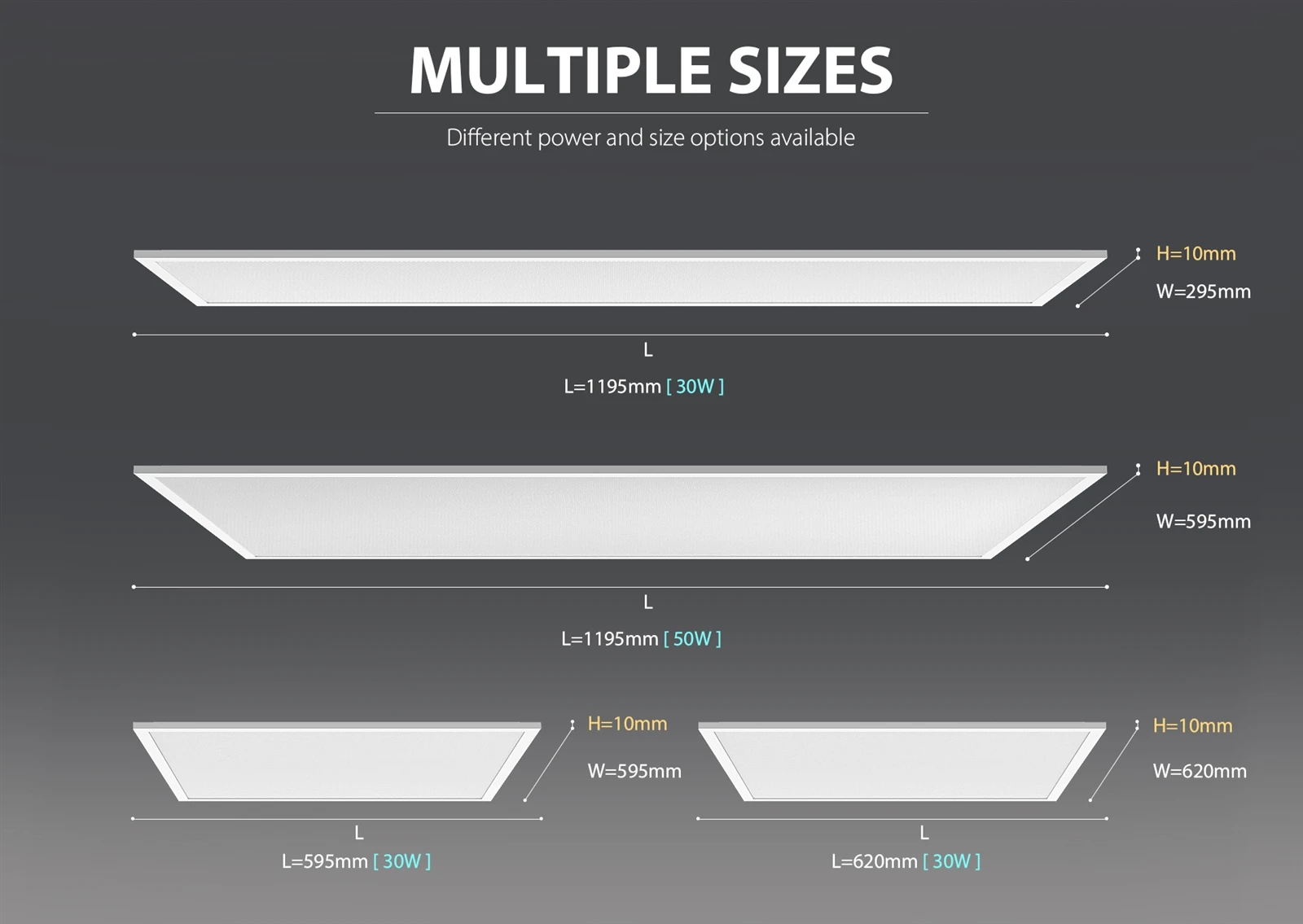

EdgeLit -4

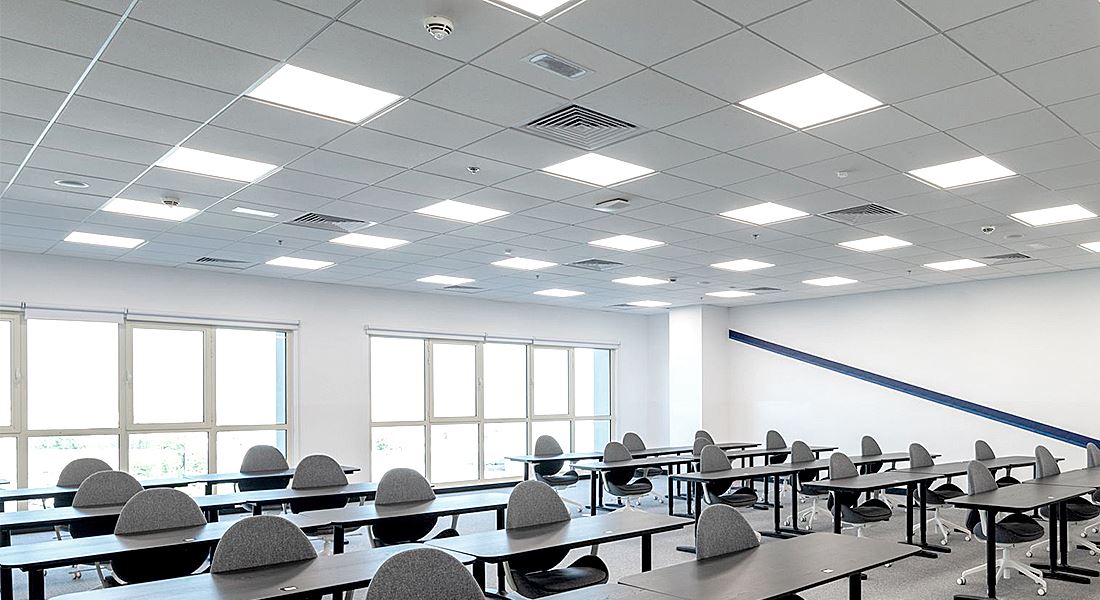

EdgeLit -5
