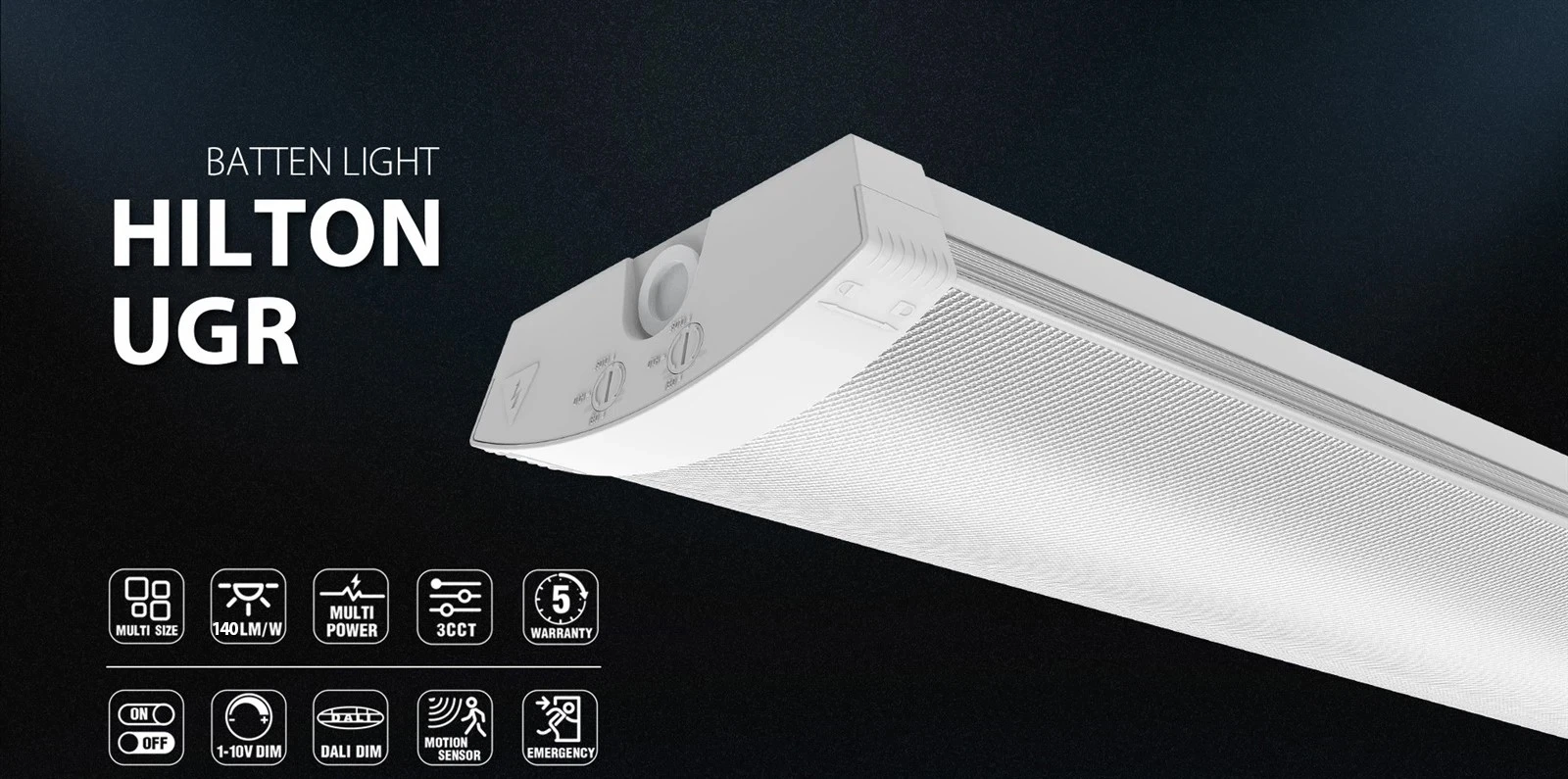

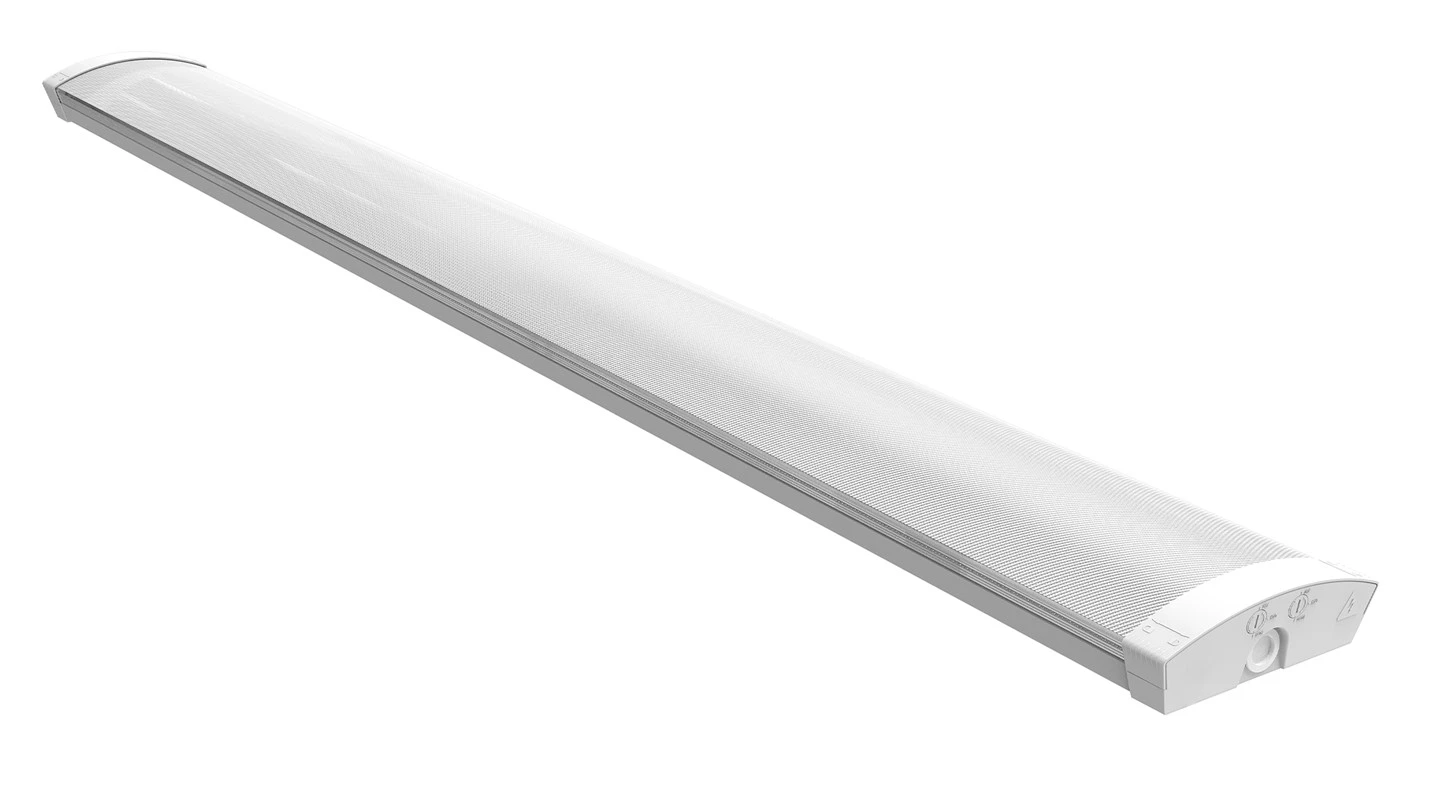

Hilton UGR Batten Chiedza

Hilton UGR Batten Chiedza

Tsanangudzo:

Hilton batten dhizaini nyowani yekushandisa iyo prismatic PMMA diffuser ine UGR, Izvo zvinoita kuti hilton batten anyanyozivikanwa pane commerical uye campus application. Iyo kesi yesimbi inoita kuti hilton batten iwedzere kudhura, Watt uye CCT chinja pamutyairi seyero inoita kuti mutengi ave nyore kune akasiyana maapplication.









Features:

>UGR<19 with prismatic diffuser

>Simba uye CCT chinja pane LED mutyairi

>Ra80 kana Ra90, SDCM<3

>Standard base hole ye wiring input

>Yakasiyana-siyana yemabasa akasiyana semasarudzo

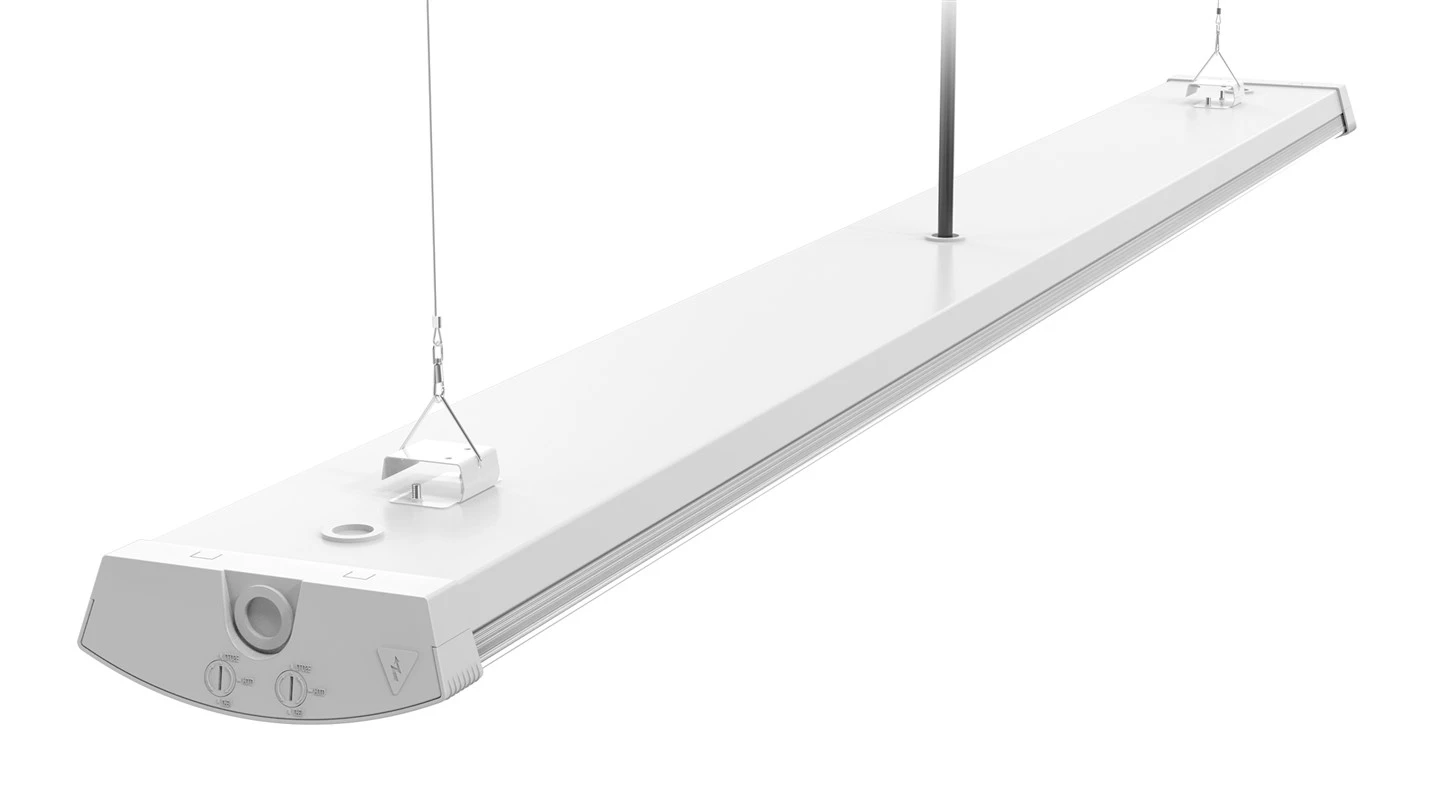

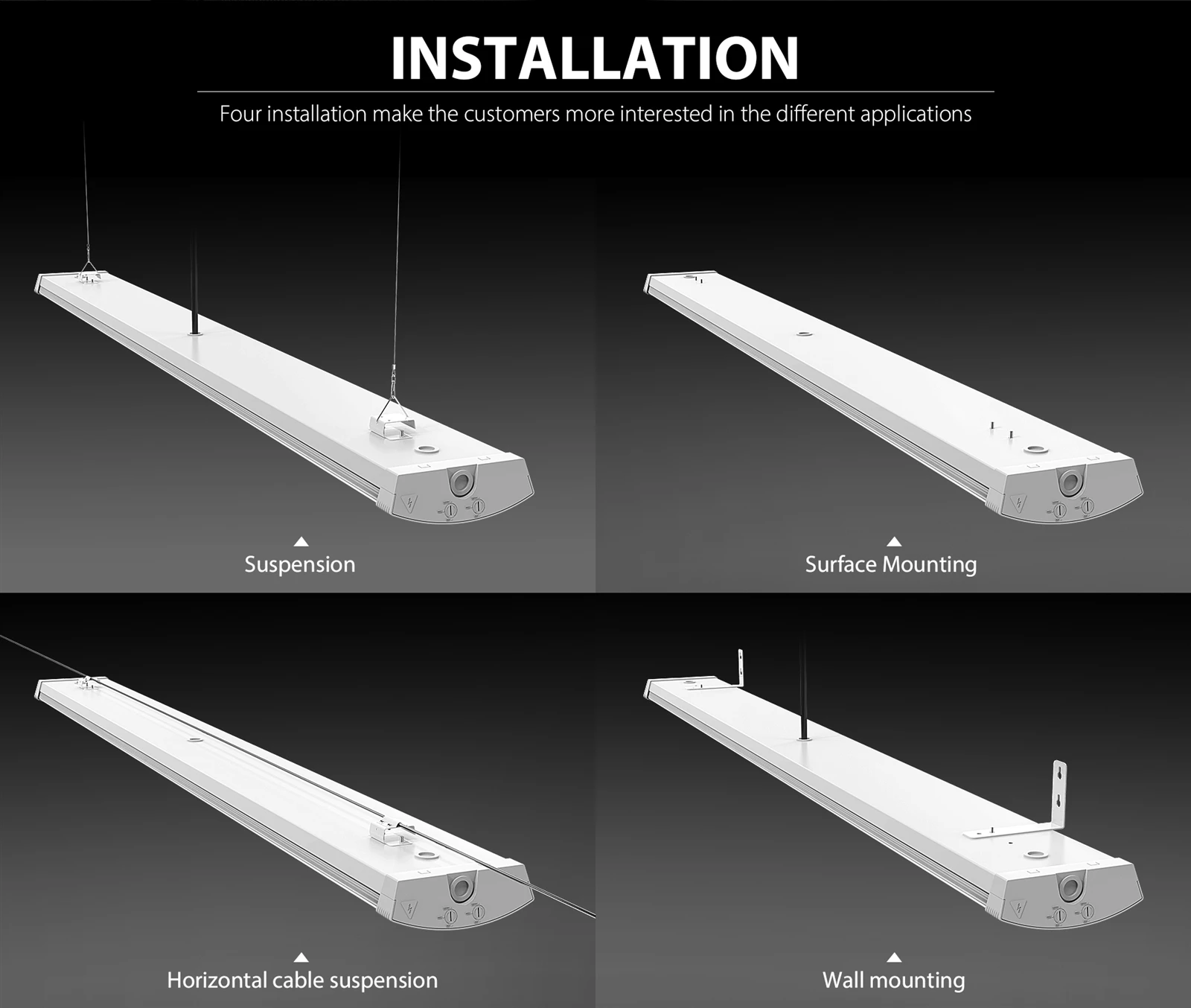

>Surface mounting / Suspension installation

>5 makore waranti

Send Inquiry
Download
Description
Technical Parameters

NHUNGAMIDZO:

Hilton UGR batten mwenje wakagadzirwa seyakakwana inotungamirwa batten mwenje wakakodzera kumahofisi, zvikoro, maraibhurari ane yakakwira lumen kubuda panguva iyi inopa yakaderera glare basa neprismatic diffuser. Aluminium imba inopa yakanakisa kupisa kupisa. Zviri nyore kuisa uye ine zvinotsiva zvikamu zvekugadzirisa nekukurumidza.



Order Code

Upamhi

Rated Power

LM/W

Lumen

UGR

CRI

SDCM

Watt/CCT
Switch

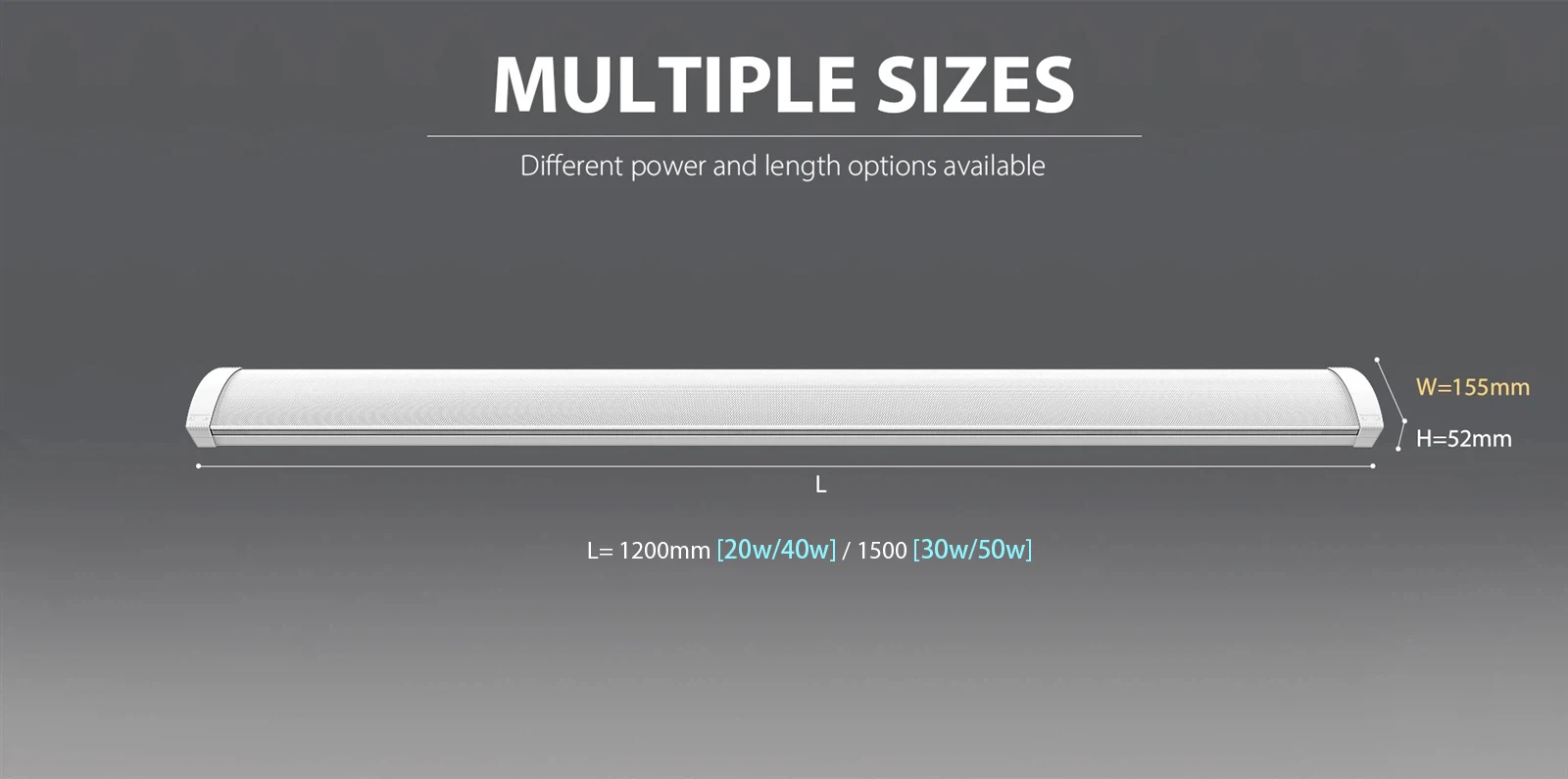

Product Dimension

GW/CTN

QTY/CTN

BT320-04W-DT1-40F01

155mm

20/40W

typ.140

typ.2800/5600

UGR<19

Ra80/90

<3

Y

L1200xW155xH52

9.2kg

4pcs

BT320-05W-DT1-50F01

155mm

30/50W

typ.140

typ.4200/7000

UGR<19

Ra80/90

<3

Y

L1500xW155xH52

11.2kg

4pcs



Hilton

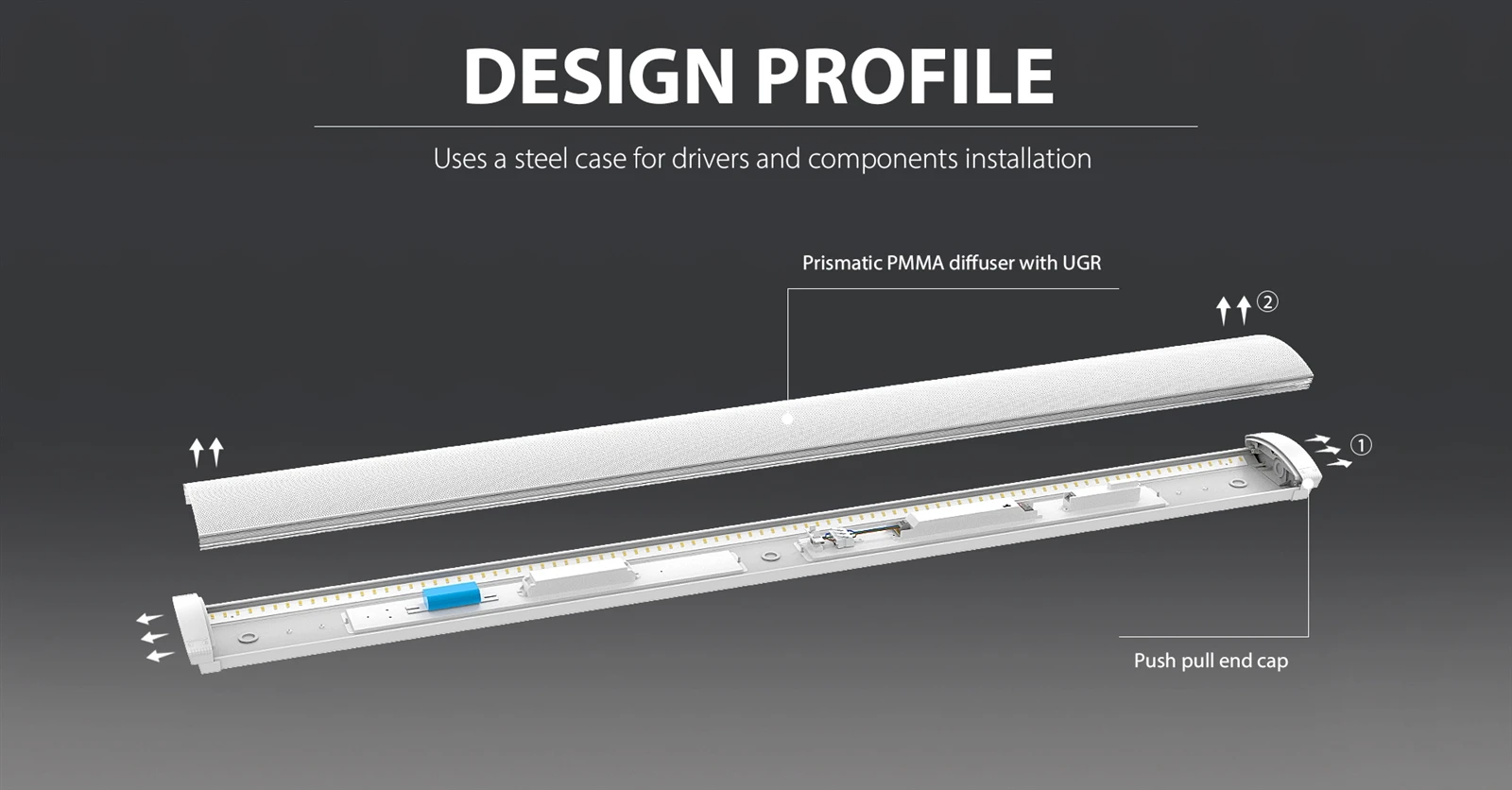

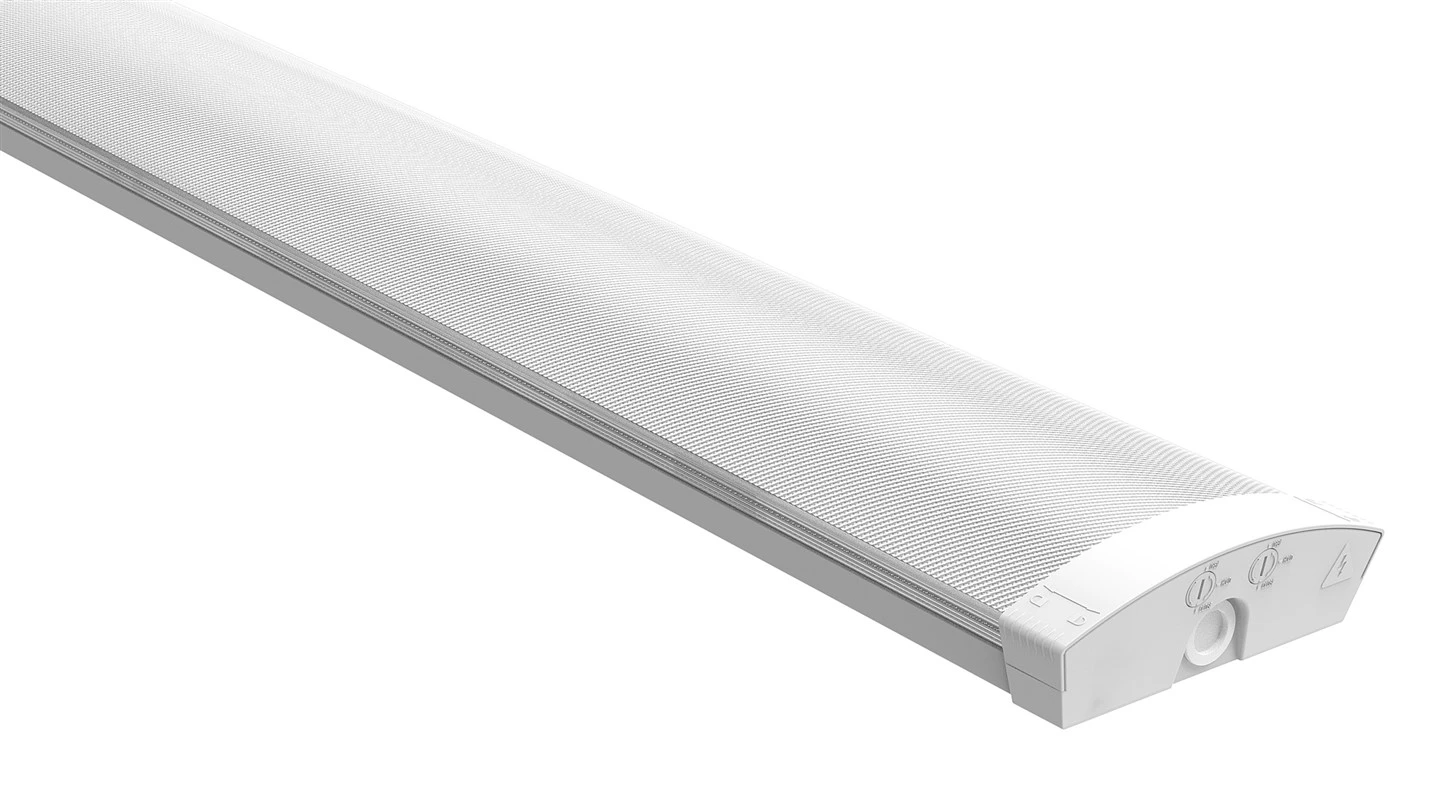

Hilton UGR batten -2



Hilton

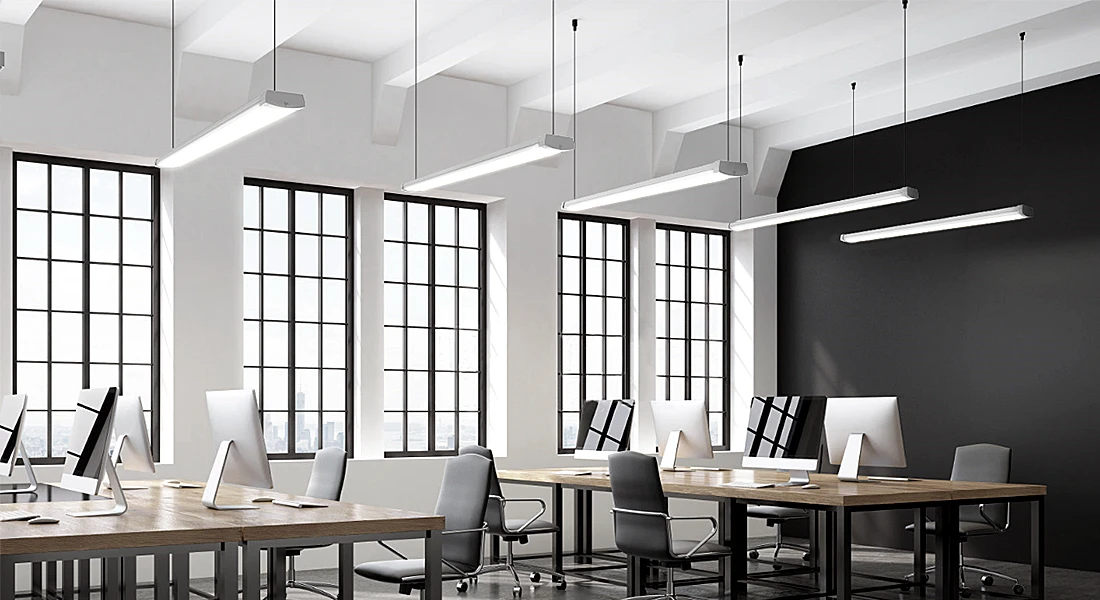

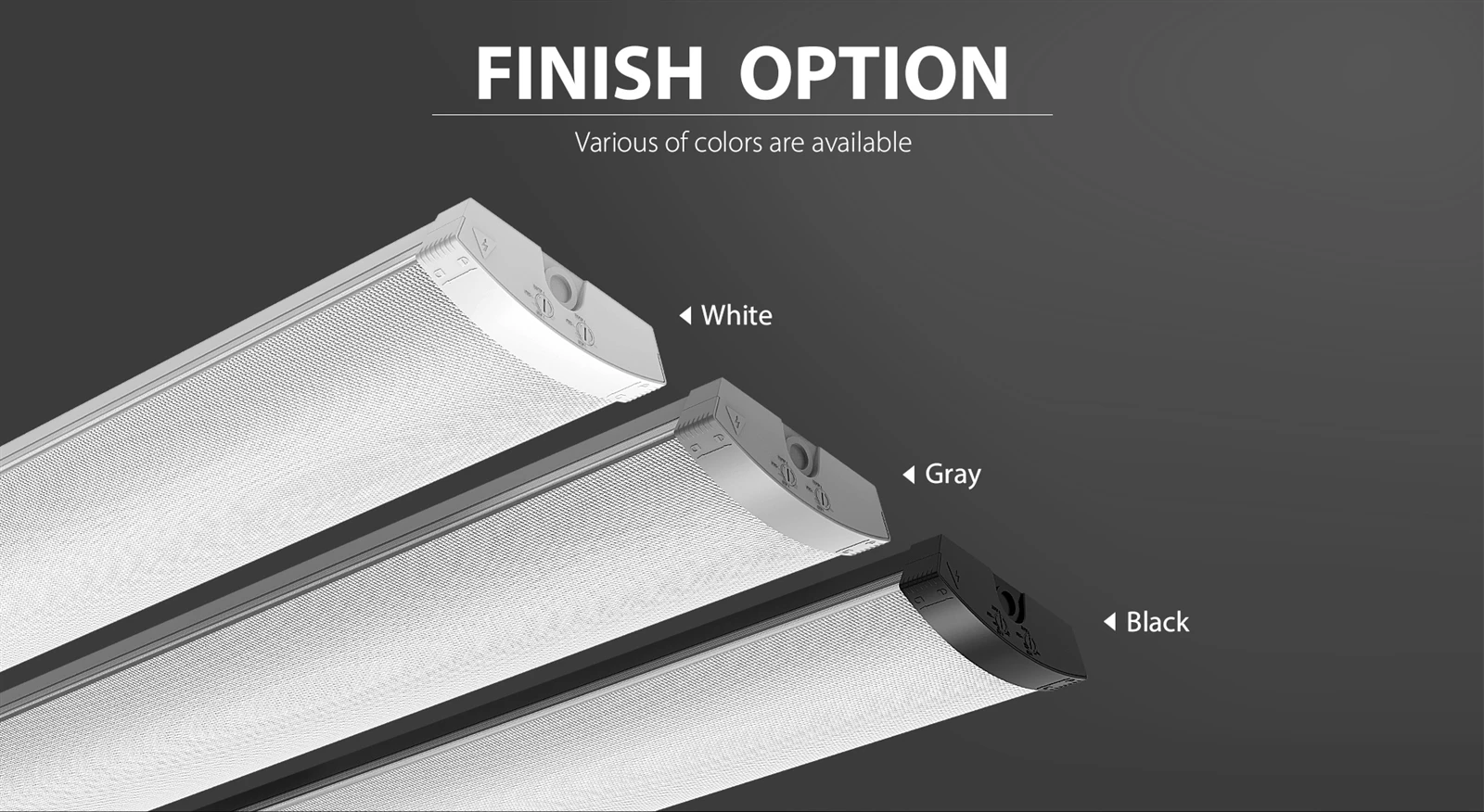

Hilton UGR batten -4

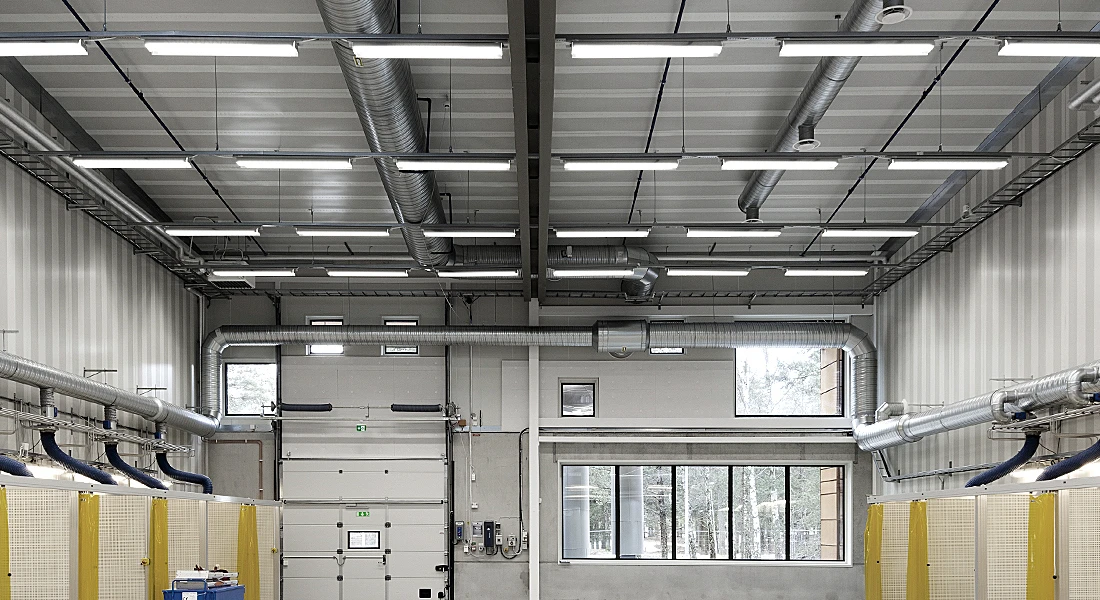

Hilton UGR batten -5
