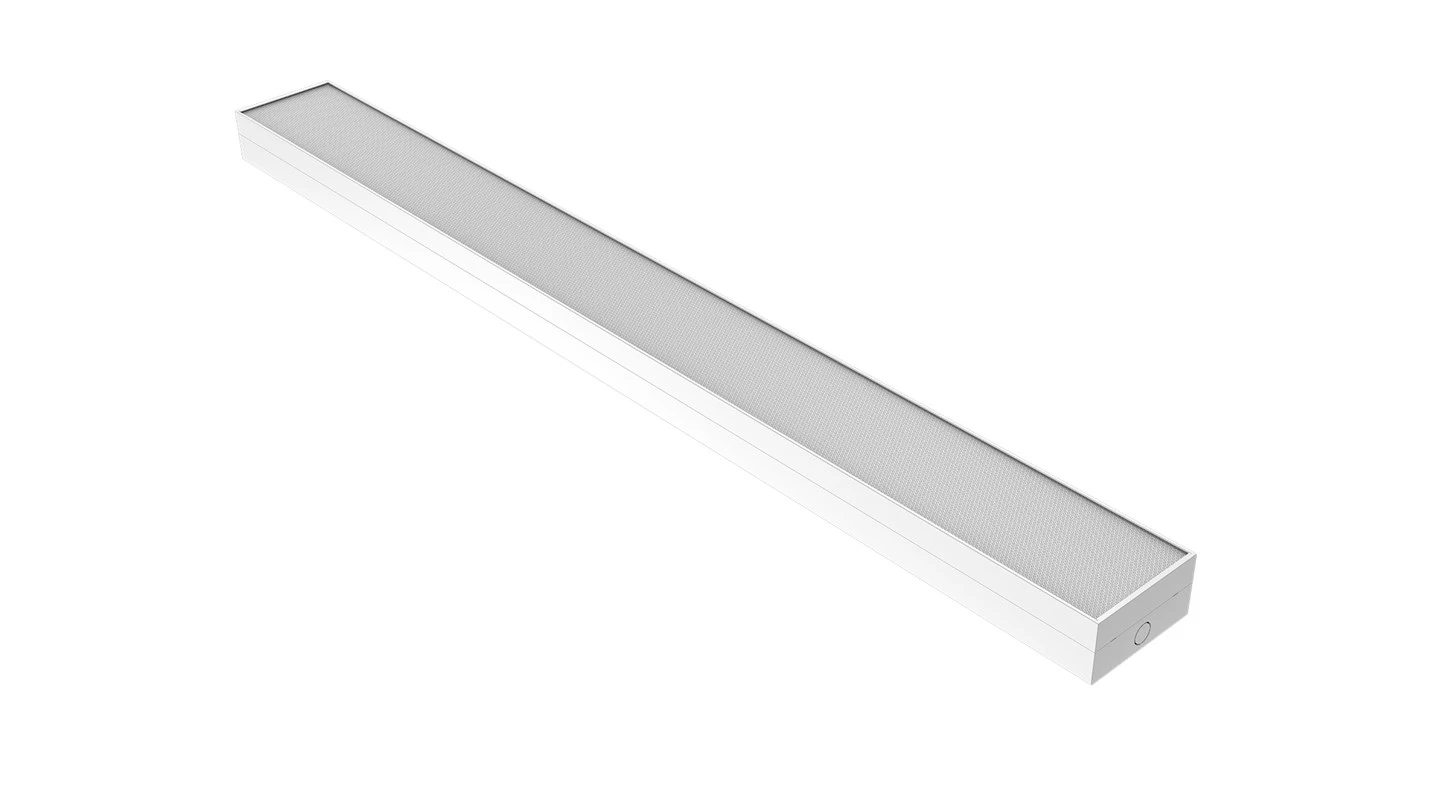

Kingston UGR Batten Chiedza

Kingston UGR Batten Light

Kingston batten -2

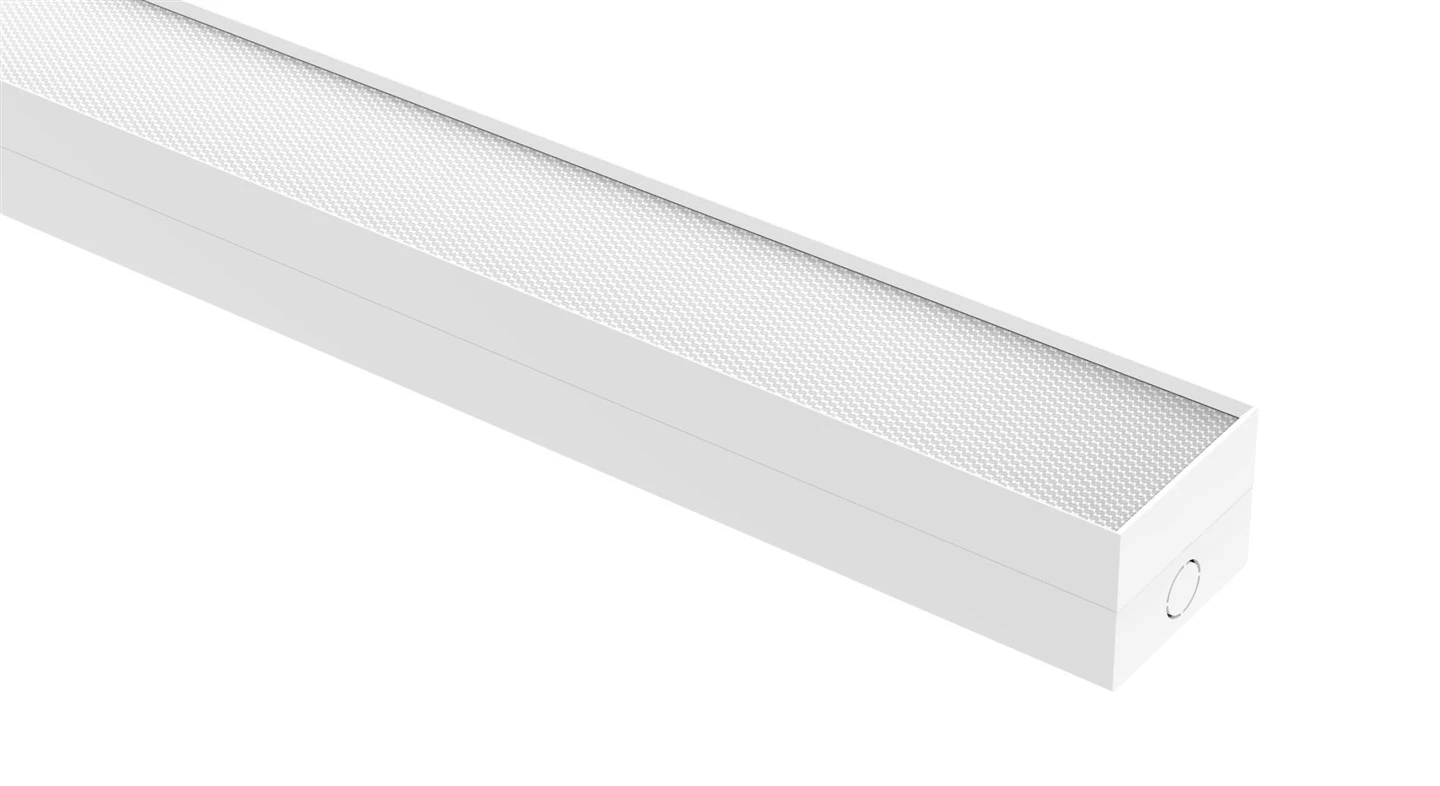

Kingston batten -3

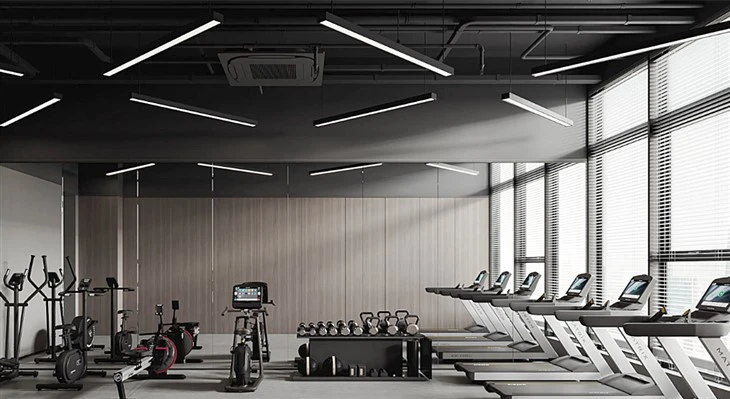

Kingston batten -4

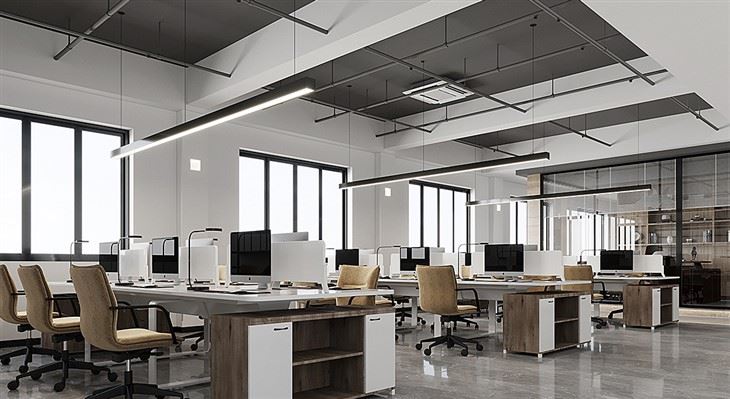

Kingston batten -5

Tsanangudzo:

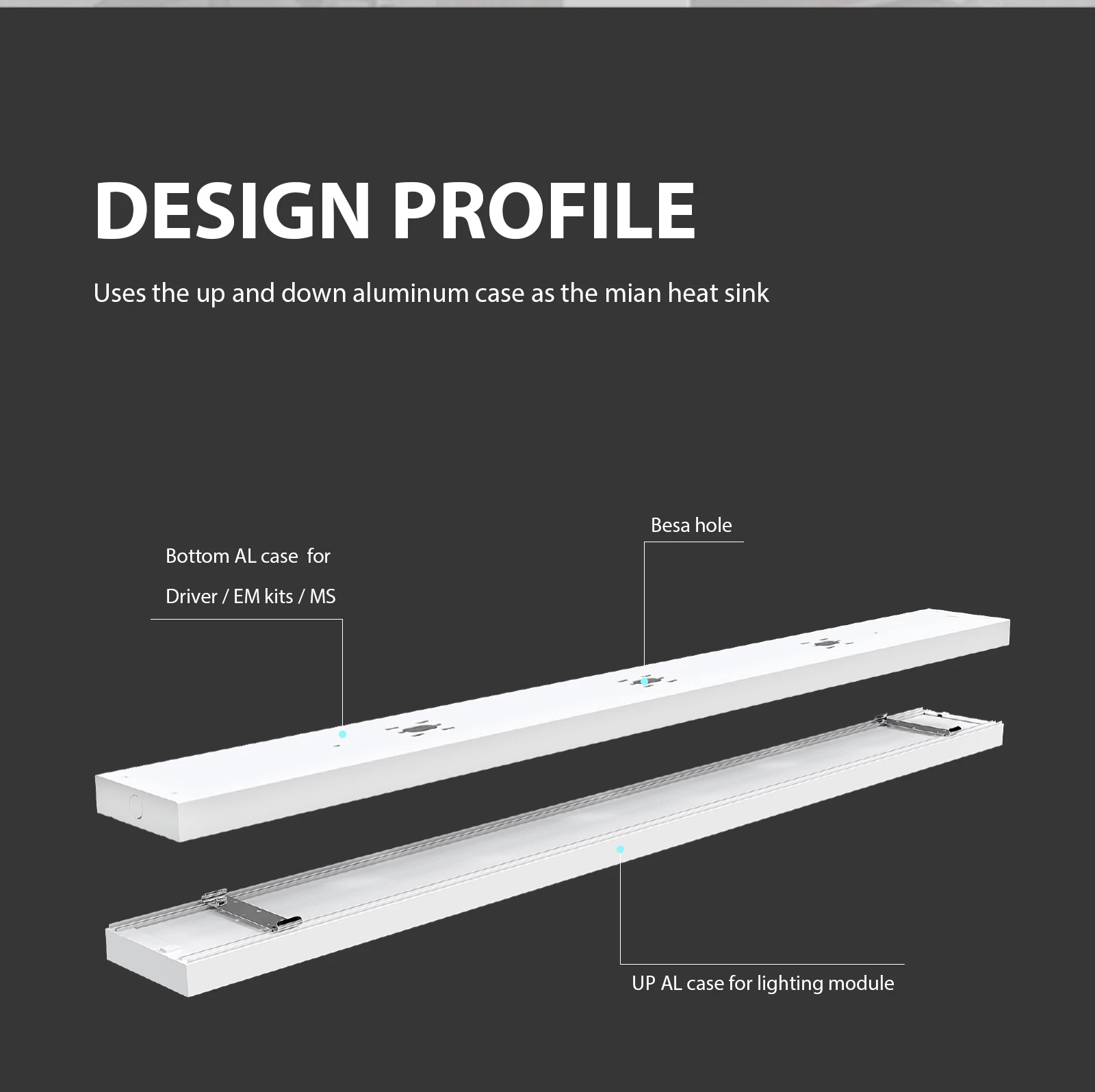

Kingston Batten shandisa iyo kumusoro uye pasi aruminiyamu kesi seyakanyanya kupisa singi, iyo isingaite chete inshuwarisi yakanaka yekudziya kupisa, asiwo inopa nguva yakareba waranti.
Kingston Batten anoshandisa PET diffuser kubva kuBright{{0}ona sechinhu chinorwisa-glare material, iyo isingangovimbisi UGR chete.<19, but also guarantees the beam angle of these range of batten series. The wattage and CCT switch on the driver as a standard for the kingston battens. It helps customers reduce inventory while also enabling fast delivery.

Feature:

>UGR<19 with brightview film

>CCT chinja pa LED mutyairi

>55mm|80mm|120mm yakafara iripo

>Ra80 kana Ra90, SDCM<3

>Kupera kana kumashure besa gomba rekupinda tambo

>Yakasiyana-siyana yemabasa akasiyana semasarudzo

>2ft / 4ft / 5ft / 6ft dimension iripo

>Recessed / Surface mounting / Suspension installation

>5 makore waranti

Send Inquiry

Download

Description

Technical Parameters

NHUNGAMIDZO:

Kinston Batten inopa 55mm, 80mm uye 120mm upamhi hwekusarudza kubva, izvo zvinoita kuti vatengi vawedzere kufarira mune zvakasiyana zvekutengesa uye hofisi application.

PROPERTY:

Kingston UGR Batten 55mm yakagadzirirwa kupa hukuru hwekuvhenekesa kuita uku uchive nechokwadi chekuona kunyaradzwa kwakanyanya. Inoshanda uye inoyevedza, iyi 2ft 4ft 5ft LED strip mwenje yakakwana kune dzakasiyana siyana dzekushandisa kubva kumahofisi emakambani kuenda kunzvimbo dzekutengesa uye zvigadziriso zveindasitiri. Imba yearuminiyamu inonyura yakanakisa yekudziya uye yakakwirira-tech SMD2835 inopa yakawedzera lumen kubuda.

Order Code	Upamhi	Rated Power	LM/W	Lumen	SDCM/Ra	Watt/CCT Switch	Product Dimension	GW/CTN	QTY/CTN
BT100-02W-DT1-20F01	55mm	10/20W	typ.130	typ.1300/2600	<3/ Ra80/90	Y	L600xW55xH64	6.0kg	8pcs
BT100-04W-DT1-40F01	55mm	20/40W	typ.130	typ.2600/5200	<3/ Ra80/90	Y	L1200xW55xH64	11.5kg	8pcs
BT100-05W-DT1-50F01	55mm	30/50W	typ.130	typ.3900/6500	<3/ Ra80/90	Y	L1500xW55xH64	14.5kg	8pcs
BT100-06W-DT1-60F01	55mm	30/60W	typ.130	typ.3900/7800	<3/ Ra80/90	Y	L1800xW55xH64	17kg	8pcs
BT110-02W-DT1-20F01	80mm	10/20W	typ.130	typ.1300/2600	<3/ Ra80/90	Y	L600xW80xH64	7.0kg	6pcs
BT110-04W-DT1-40F01	80mm	20/40W	typ.130	typ.2600/5200	<3/ Ra80/90	Y	L1200xW80xH64	12.0kg	6pcs
BT110-05W-DT1-50F01	80mm	30/50W	typ.130	typ.3900/6500	<3/ Ra80/90	Y	L1500xW80xH64	14.0kg	6pcs
BT110-06W-DT1-60F01	80mm	30/60W	typ.130	typ.3900/7800	<3/ Ra80/90	Y	L1800xW80xH64	18.0kg	6pcs
BT120-02W-DT1-20F01	120mm	10/20W	typ.130	typ.1300/2600	<3/ Ra80/90	Y	L600xW120xH64	7.0kg	4pcs
BT120-04W-DT1-40F01	120mm	20/40W	typ.130	typ.2600/5200	<3/ Ra80/90	Y	L1200xW120xH64	10.5kg	4pcs
BT120-05W-DT1-50F01	120mm	30/50W	typ.130	typ.3900/6500	<3/ Ra80/90	Y	L1500xW120xH64	13.0kg	4pcs
BT120-06W-DT1-60F01	120mm	30/60W	typ.130	typ.3900/7800	<3/ Ra80/90	Y	L1800xW120xH64	15.5kg	4pcs

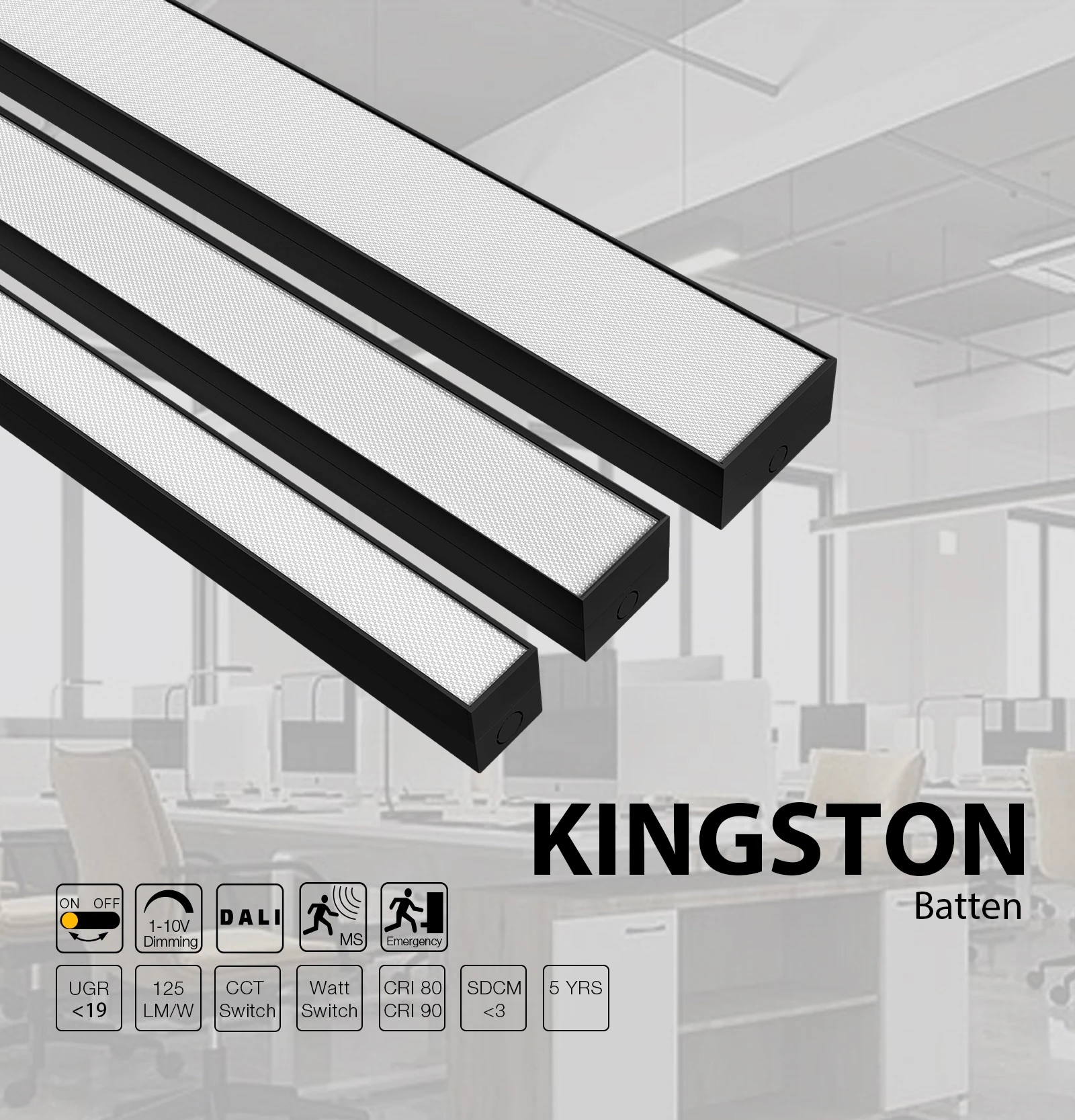

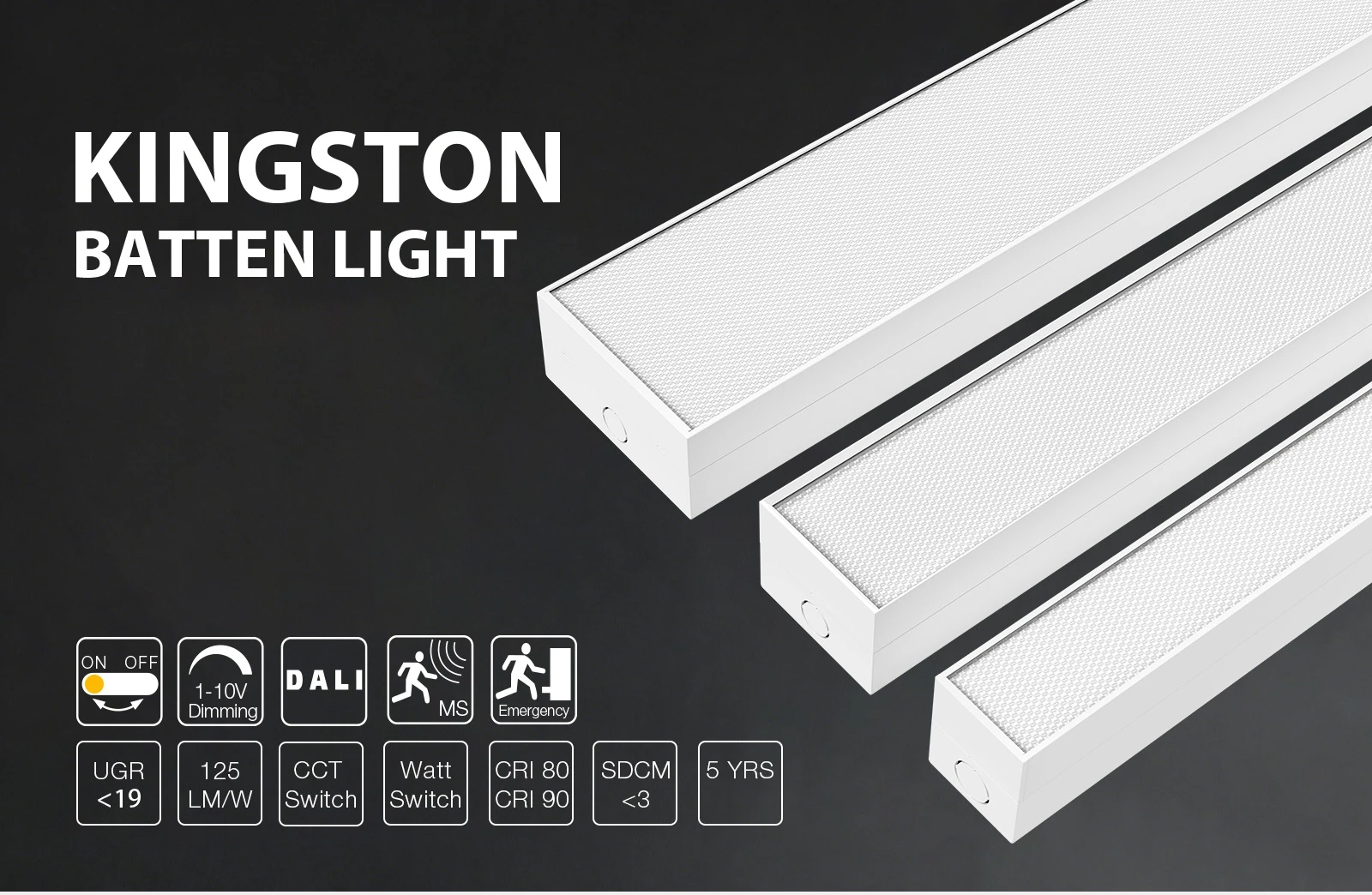

Kingston01

Kingston02

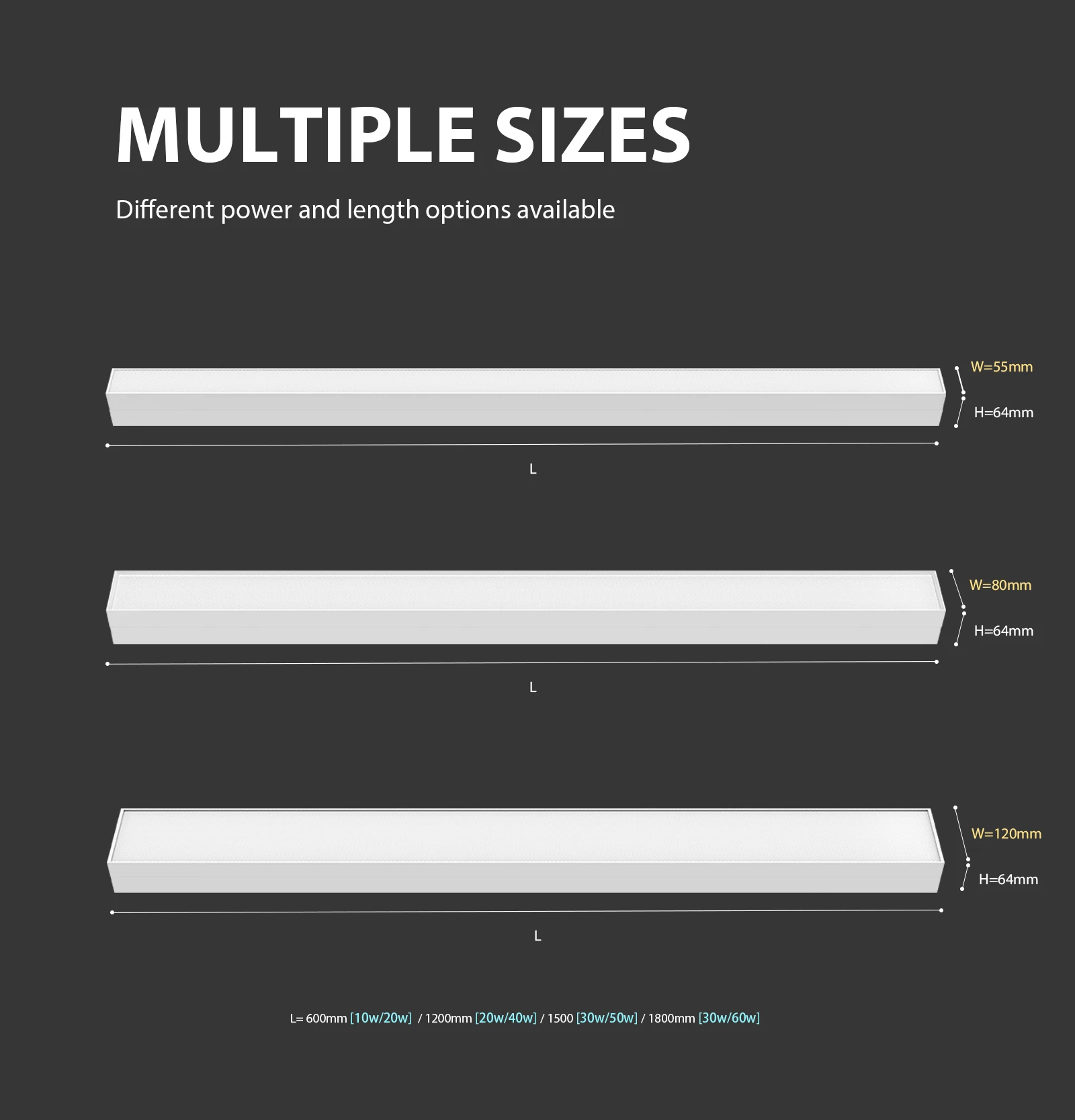

Kingston03

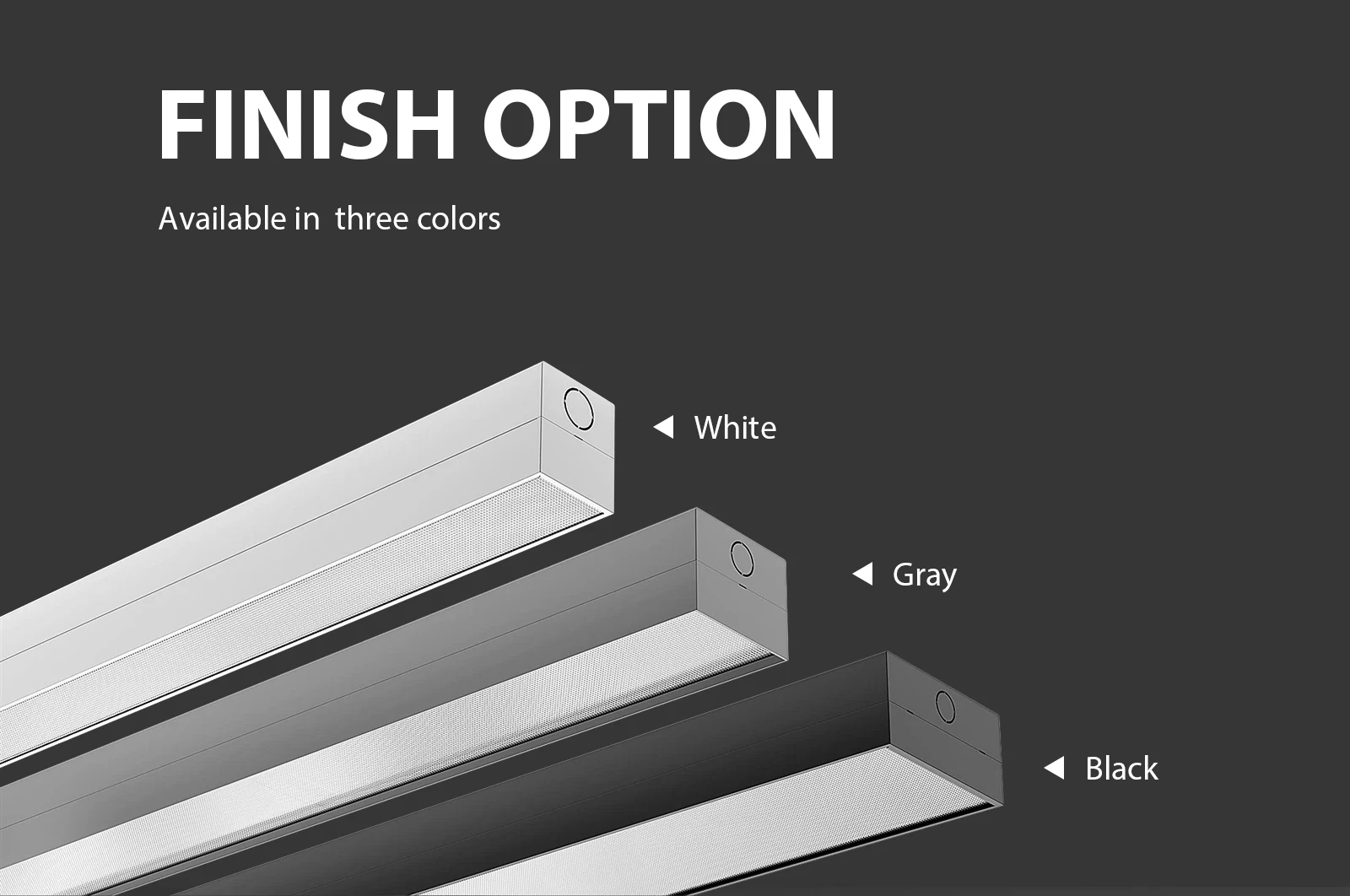

Kingston04

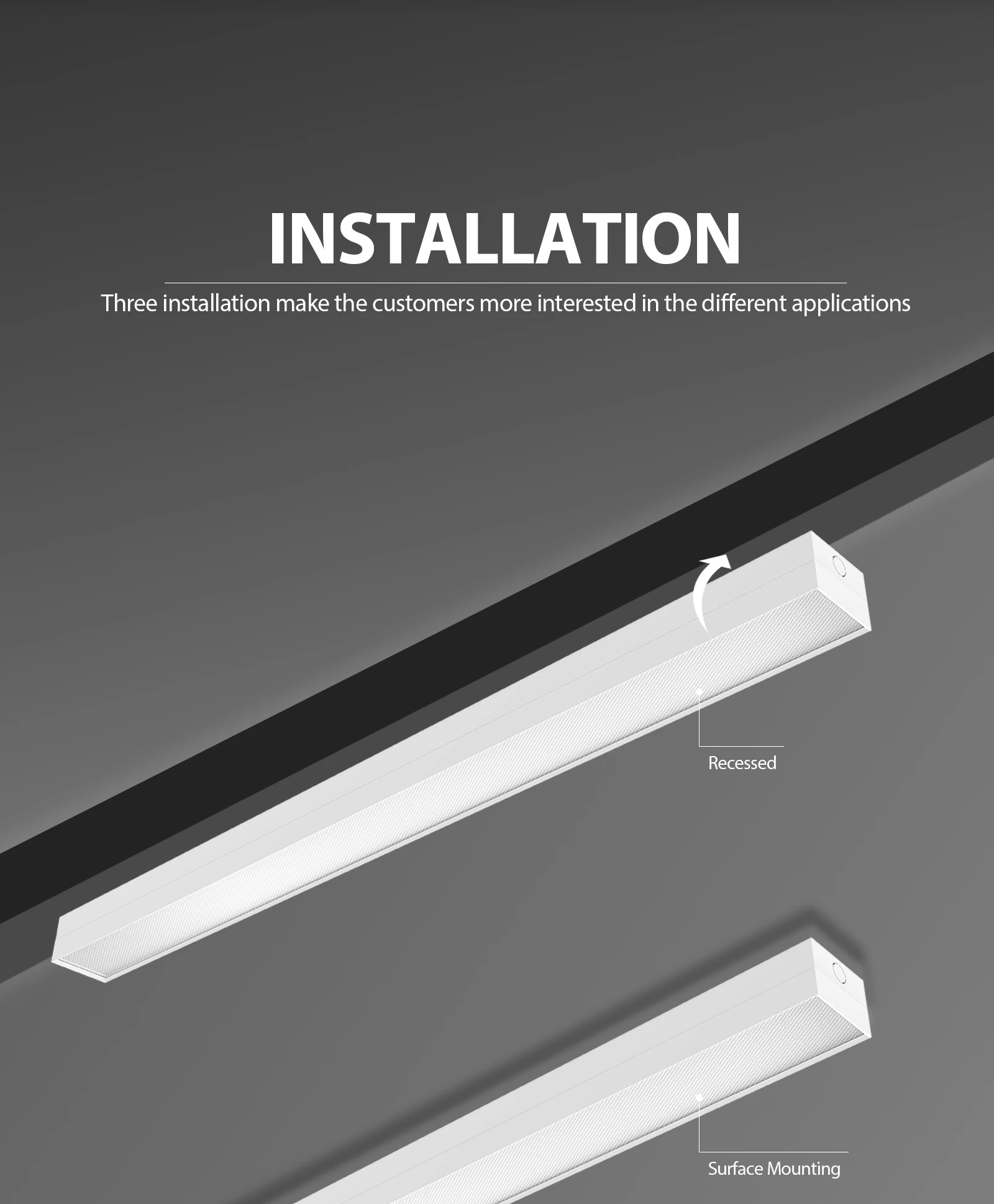

Kingston05

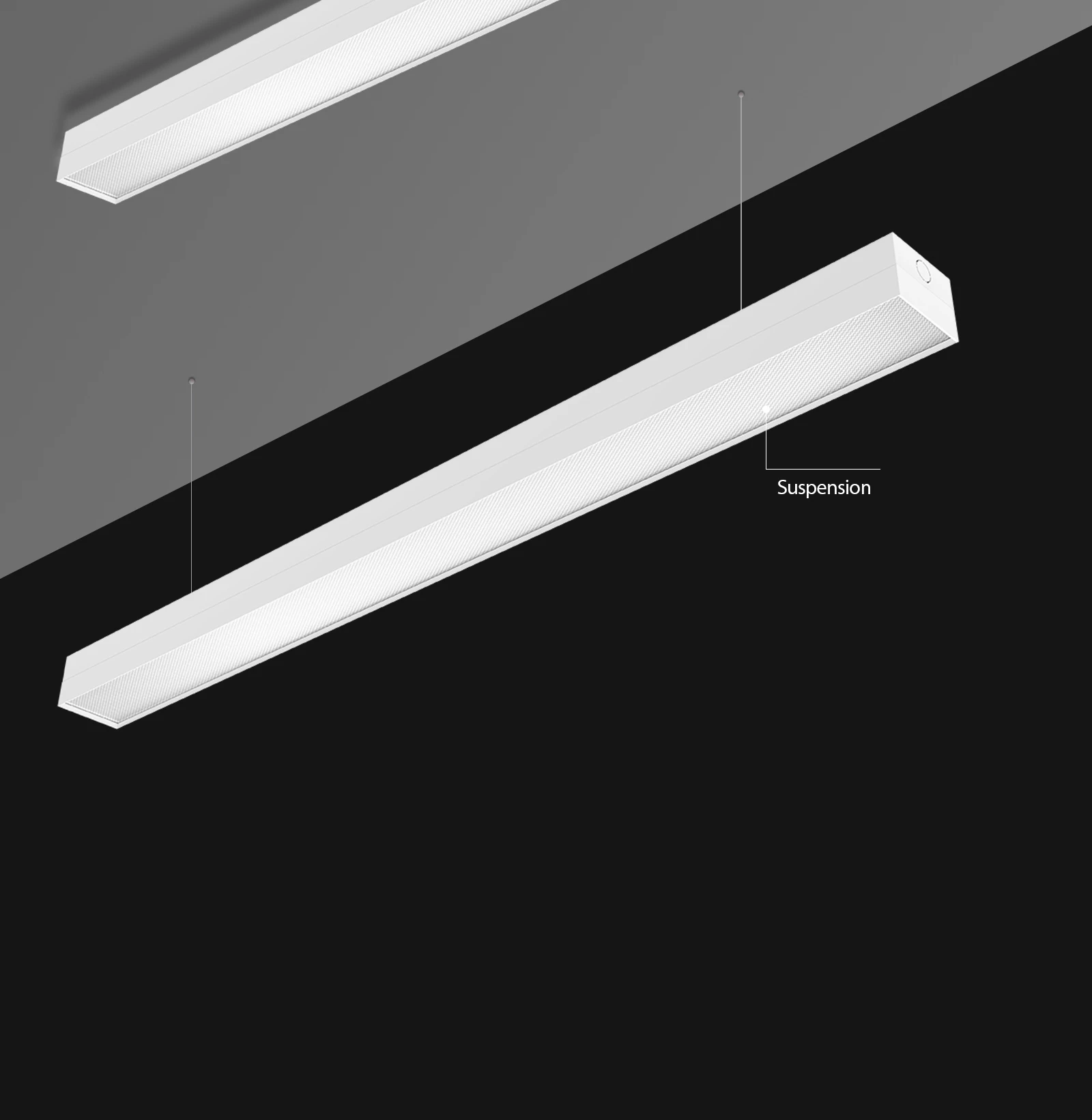

Kingston06
