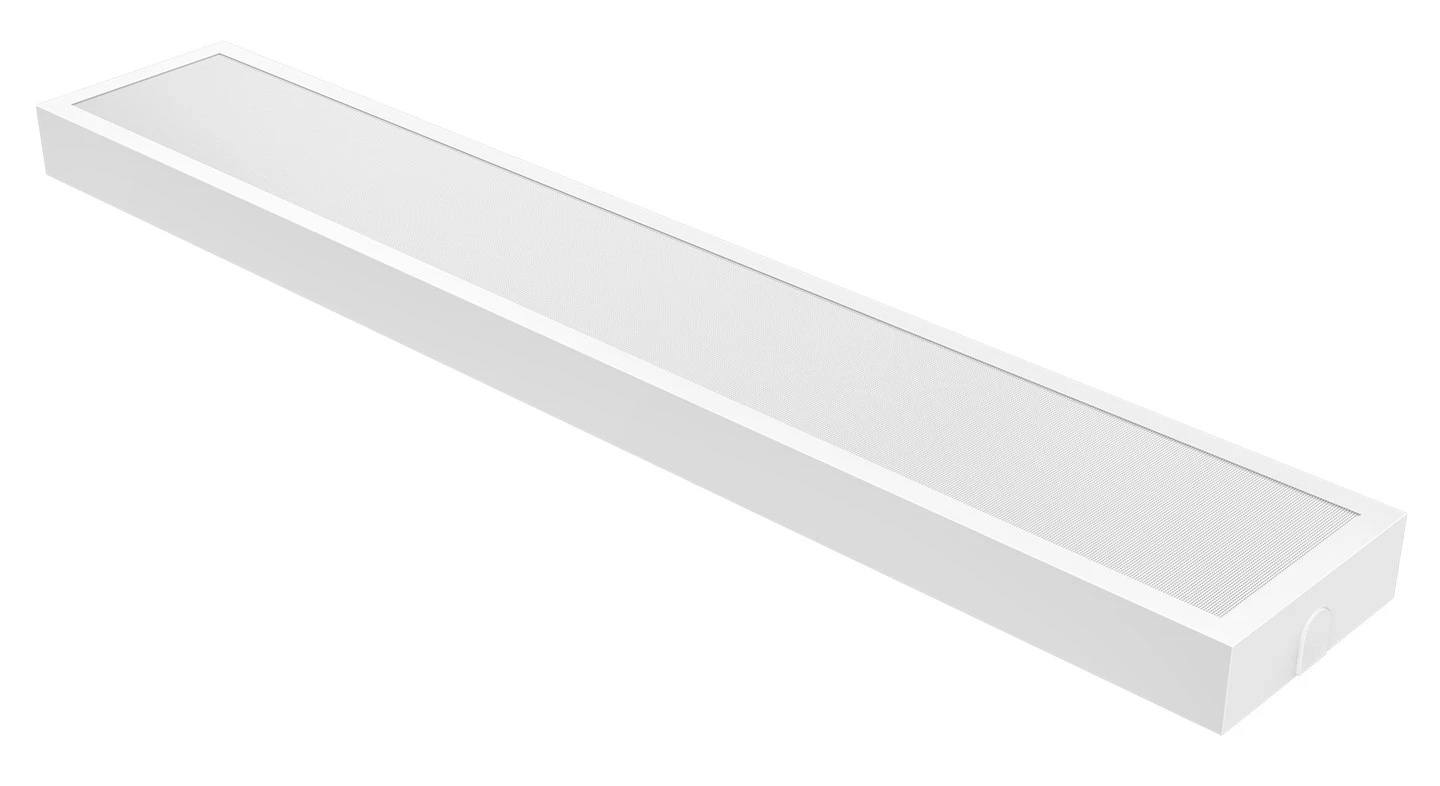

Sutton UGR Batten Chiedza

Sutton UGR Batten Light

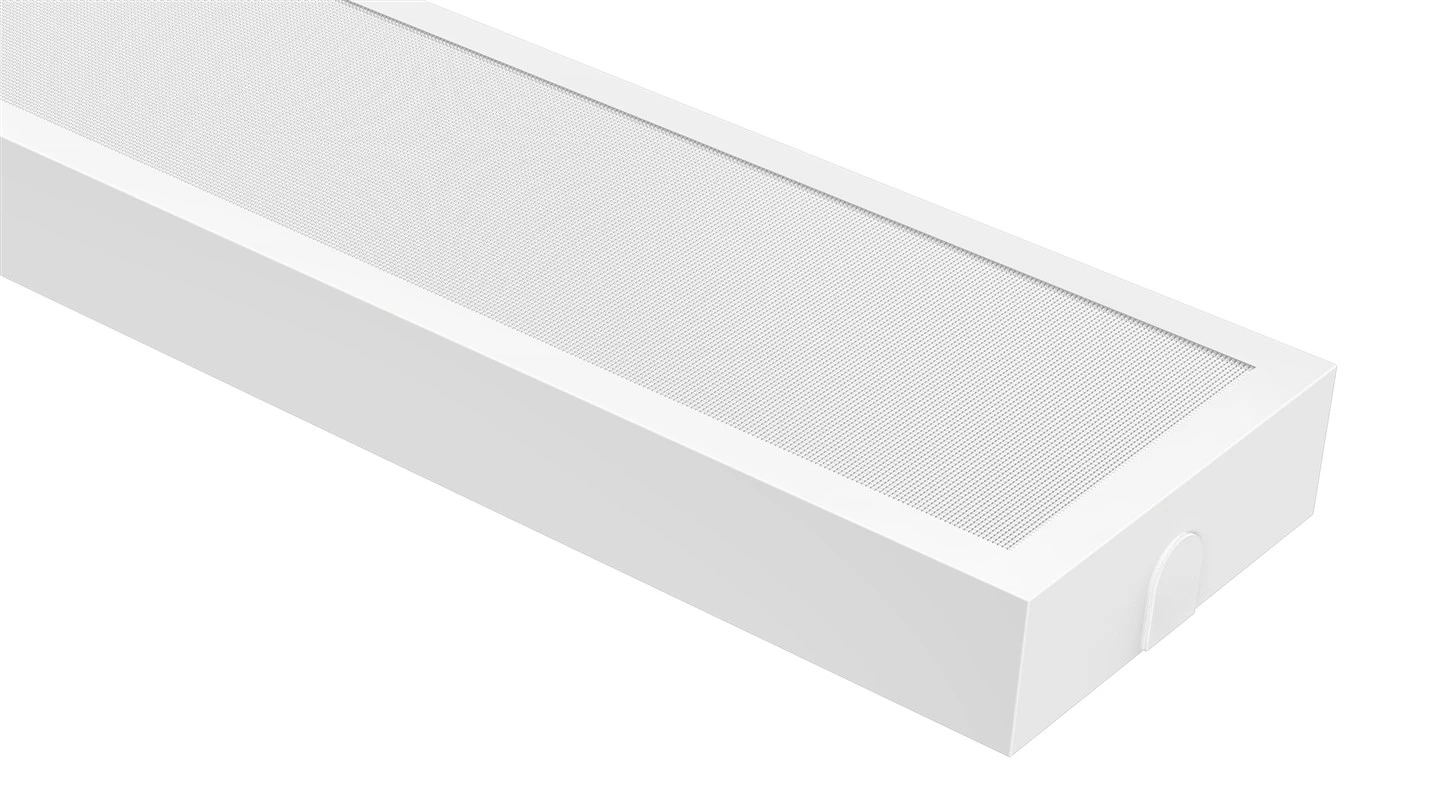

Sutton batten -2

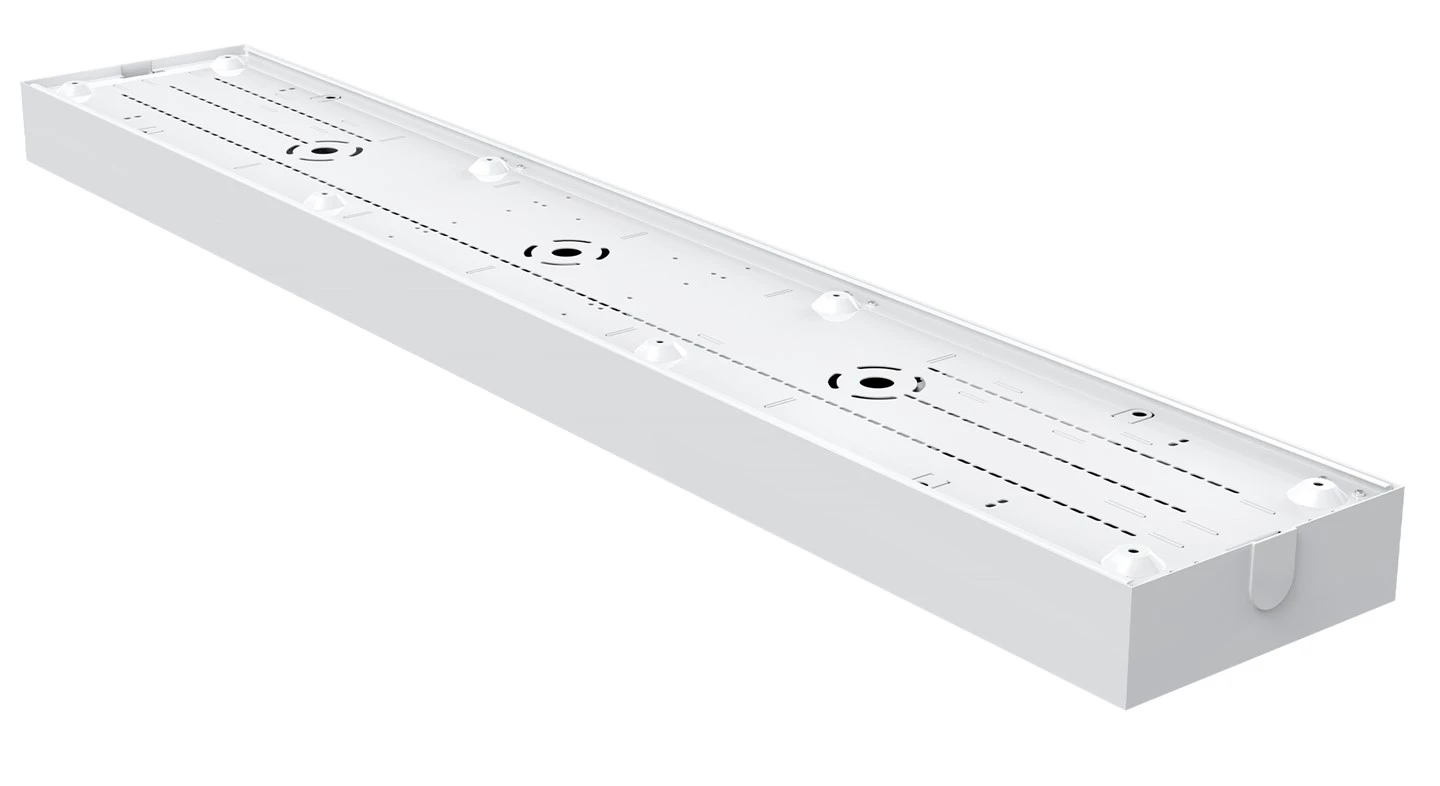

Sutton batten -3

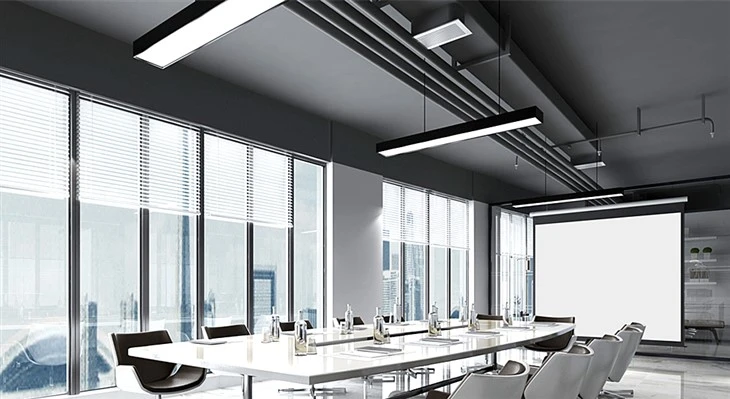

Sutton batten -4

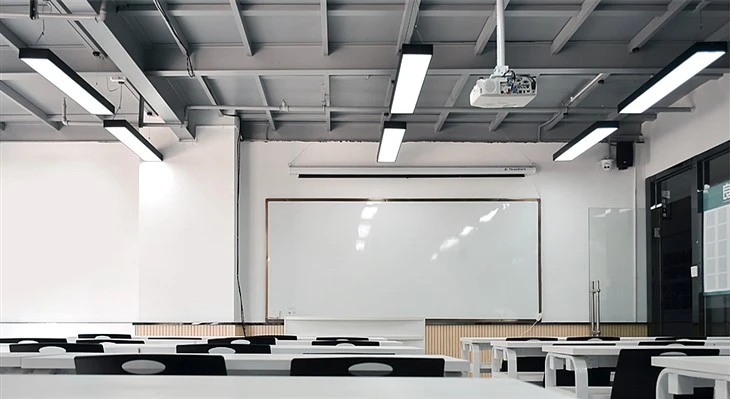

Sutton batten -5

Tsanangudzo:

Sutton batten i200mm simbi yakaderera glare linear ine akasiyana emabasa, Iyo yekuisa yemukati unit inoita kuti sutton batten ive nyore pakugadzika uye kutsiva. Sutton batten yaishandiswa zvakanyanya pakushambadzira / maindasitiri / hofisi uye campus application.

Feature:

>Prismatic diffuser, UGR<19

>Wattage & CCT chinja

>Upamhi: 200mm, akawanda anobatanidza

>Multiple installation options

>5 makore waranti

Send Inquiry

Download

Description

Technical Parameters

NHUNGAMIDZO:

Toppo low glare batten ndeye yakazara LED mwenje mhinduro inotsiva yechinyakare mwenje zvigadziriso neUGR data. Iwo mabheti ari kuwedzera uye akakurumbira mazuva ano nekuti ari kunyanya kushongedza uye azvino asi achichengetedza yakakwira lumen kunyatsoshanda. Kwete chete ivo vanosvika pamusoro pe140 LM/W, asi ivo vanogona zvakare kuwana UGR<19 in office and education applications.

Order Code	Rated Power	LM/W	Lumen	SDCM/Ra	IP Kirasi	Product Dimension	GW/CTN	QTY/CTN
BT400-04W-PN1-40F01-00	30W/40W	typ.140	typ.4200/5600	<3 / Ra80/90	IP20	L1170W200H60	22.0kg	4pcs
BT400-05W-PN1-60F01-00	40W/60W	typ.140	typ.5600/8400	<3 / Ra80/90	IP20	L1470W200H60	25.0kg	4pcs

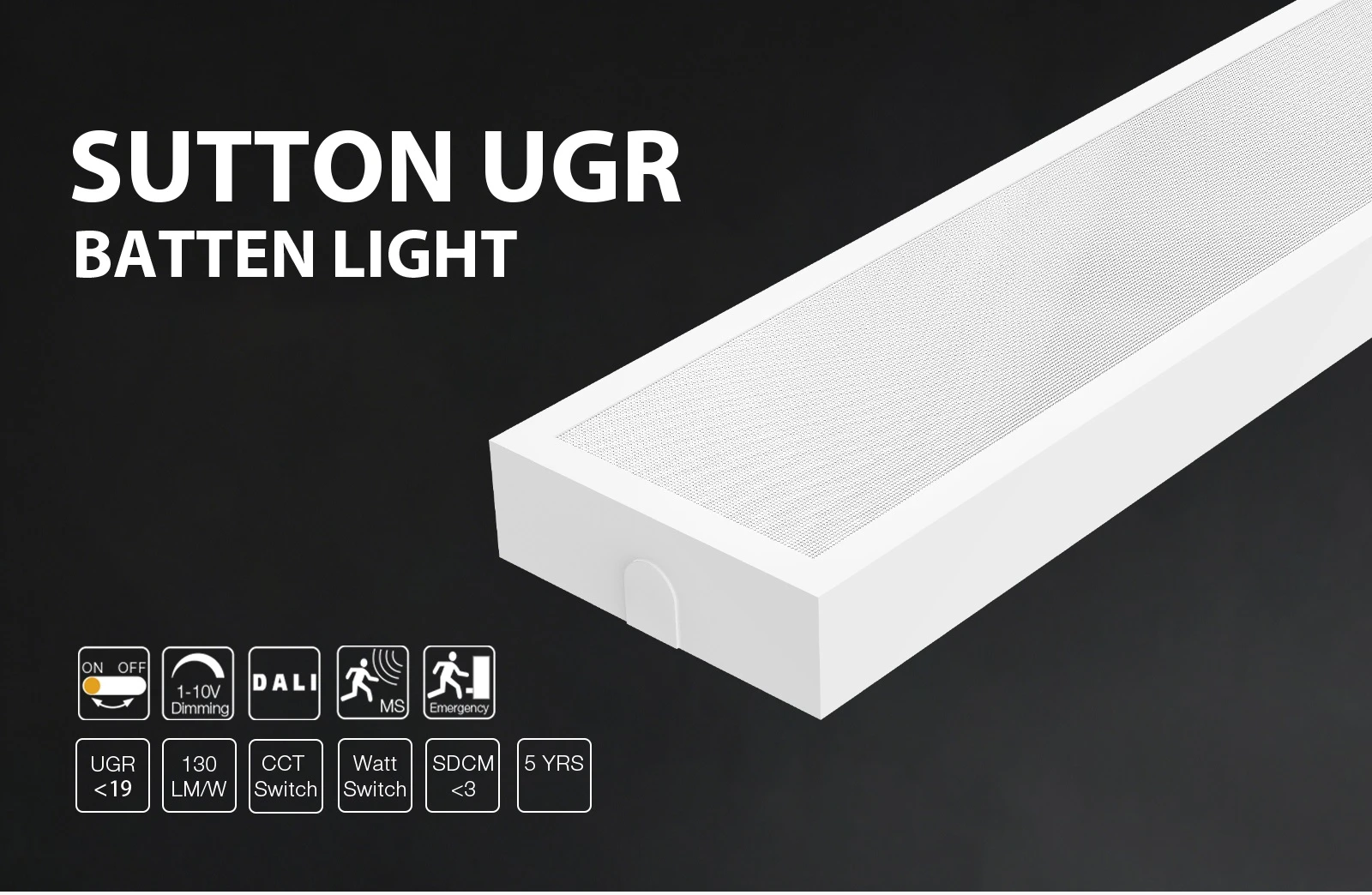

Sutton 01

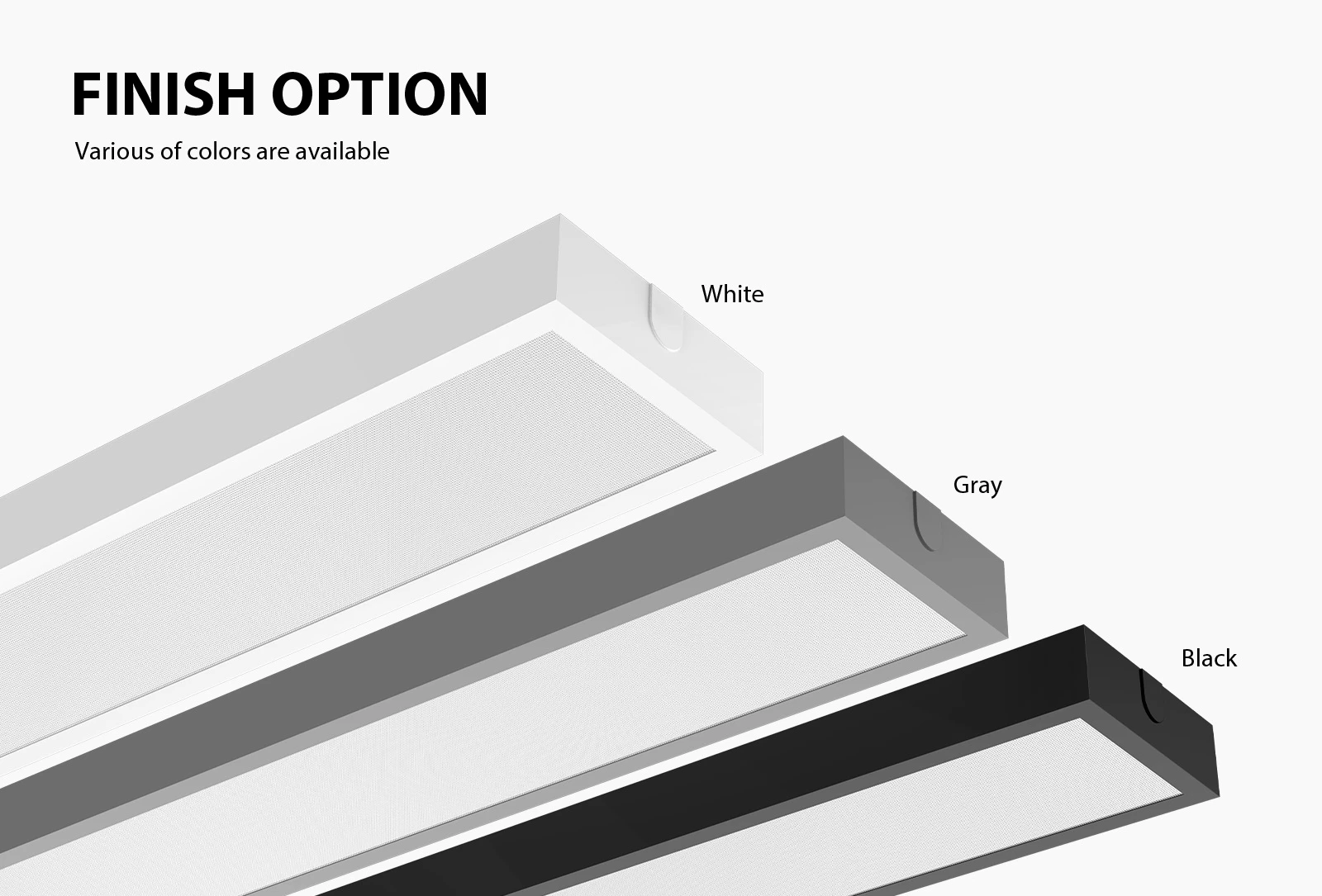

Sutton 02

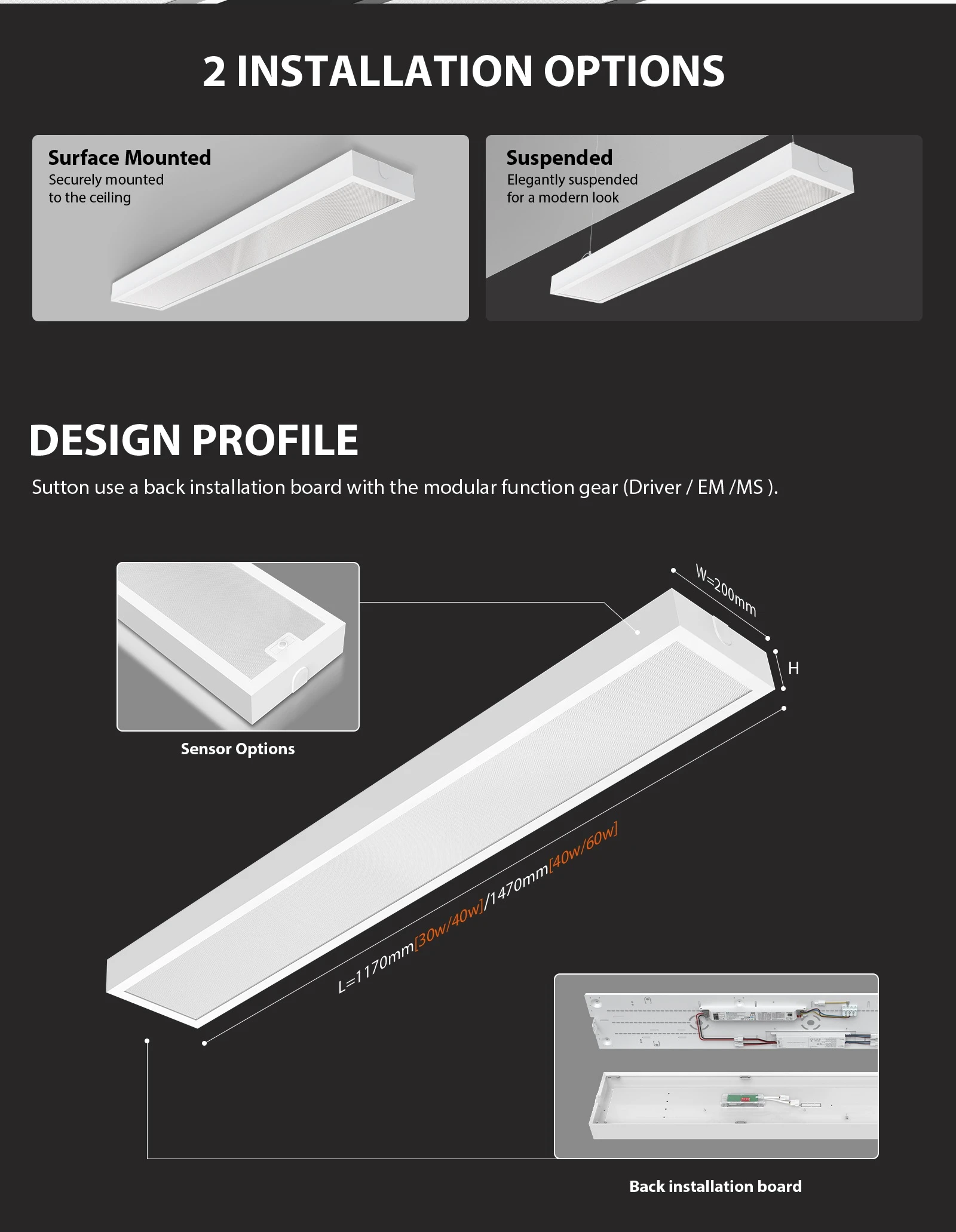

Sutton 03

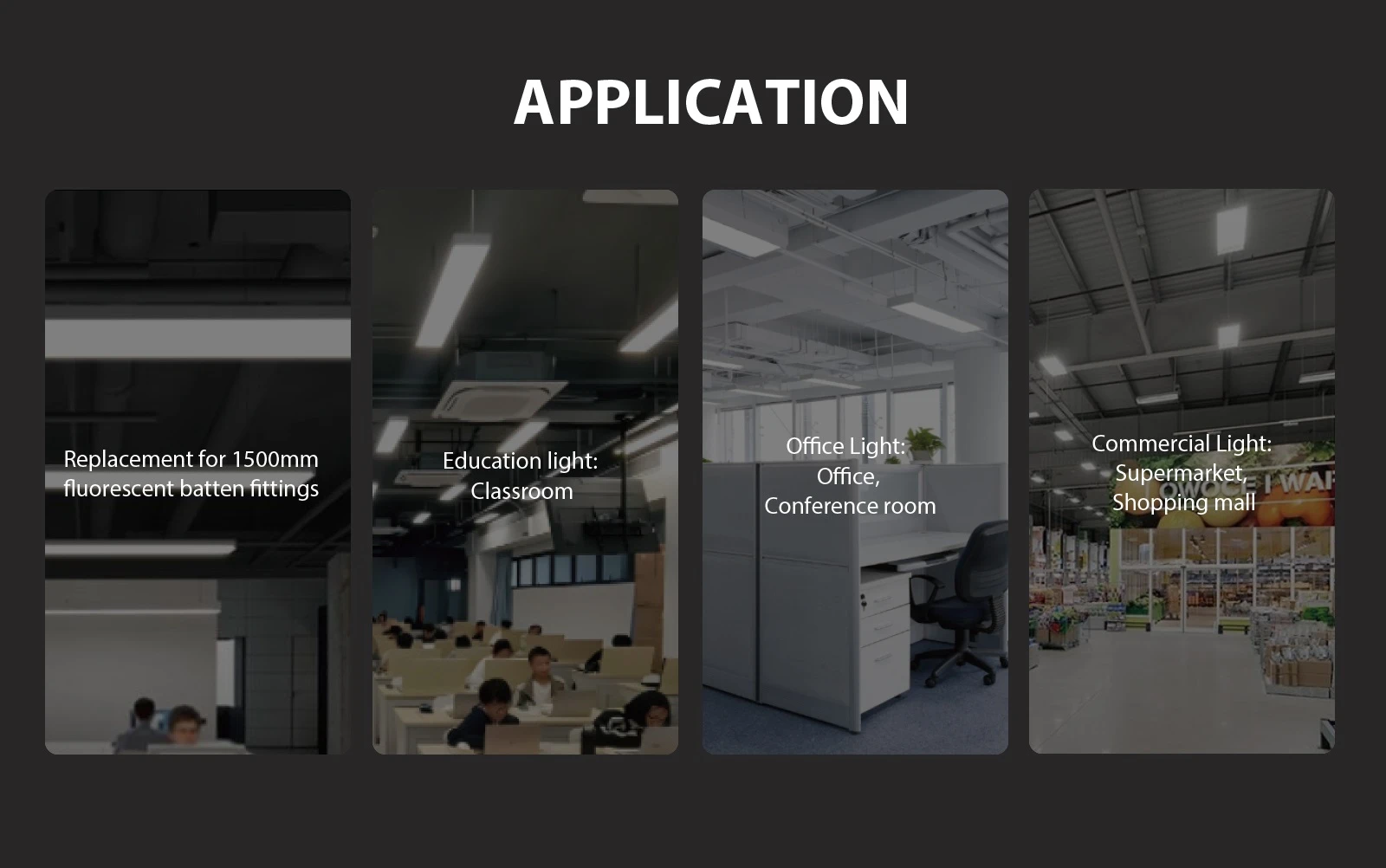

Sutton 04

Hot Tags: sutton UGR batten mwenje, China sutton UGR batten mwenje vanogadzira, vatengesi, fekitori
